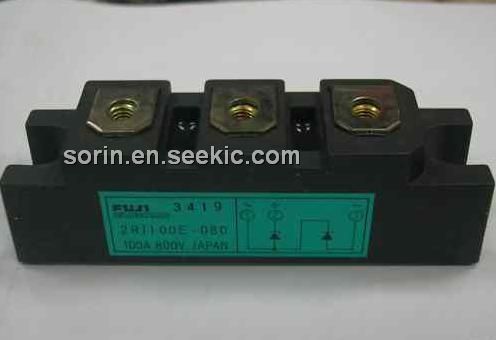

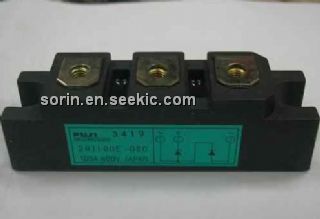

Product Summary

 Glass Passivation Chip· Easy Connection· Insulated Type

Inverters· Battery Chargers· DC Motors· General Purpose DC Power Supplies

Parametrics

Absolute maximum ratings Item Repetitive peak reverse voltage Non-repetitive peak reverse voltage Average output current Surge current It Operating junction temperature Storage temperature Isolation voltage Screw torque *1: Recommendable value 3.0 N·m(M5) Electrical characteristics (Ta=25°C Unless otherwise specified ) Item Forward voltage drop Reverse current Thermal Characteristics Item Thermal resistance Symbol Rth(j-c) Rth(c-f) Conditions Junction to case the base to cooling fin * Min. Typ. Max. 0.2 0.10 Unit °C/W Symbol VFM IRRM Conditions IFM=320A Tj=150°C, VR=VRRM Min. Typ. Max. 1.30 20 Unit V mA

Features

All the terminals and the mounting plate are electrically isolated. These modules can be installed inthe same cooling fin as other modules, thus saving installation space--a cost-effective feature

The diode chips are coated with a glass of zinc oxide,making them highly resistant to temperature and humidity variation.

Two diodes chips are connected in series internally,so allowing the rectifying circuit to be simplified

Diagrams
