Product Summary

 IGBTMODTM Modules are designed for use in switching applications. Each module consists of two IGBT Transistors in a halfbridge configuration with each transistor having a reverseconnected super-fast recovery free-wheel diode. All components and interconnects are isolated from the heat sinking baseplate, offering simplified system assembly and thermal management. Features: Low Drive Power Low VCE(sat) Discrete Super-Fast Recovery Free-Wheel Diode Isolated Baseplate for Easy Heat Sinking



Parametrics

Applications: AC Motor Control Motion/Servo Control UPS Welding Power Supplies Laser Power Supplies Ordering Information: Example: Select the complete module number you desire from the table - i.e. a 1200V (VCES), 400 Ampere Dual IGBTMODTM Power Module.

Characteristics Collector-Cutoff Current Gate Leakage Voltage Gate-Emitter Threshold Voltage Collector-Emitter Saturation Voltage Symbol ICES IGES VGE(th) VCE(sat) QG VEC Test Conditions VCE = VCES, VGE = 0V VGE = VCES, VCE = 40mA, VCE = 400A, VGE = 400A, VGE = 125°C Total Gate Charge Emitter-Collector Voltage** VCC = 400A, VGE = 400A, VGE = 0V Min. Typ. Max. Units mA μA Volts nC Volts



Features

HIGH POWER SWITCHING USE



Diagrams



Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

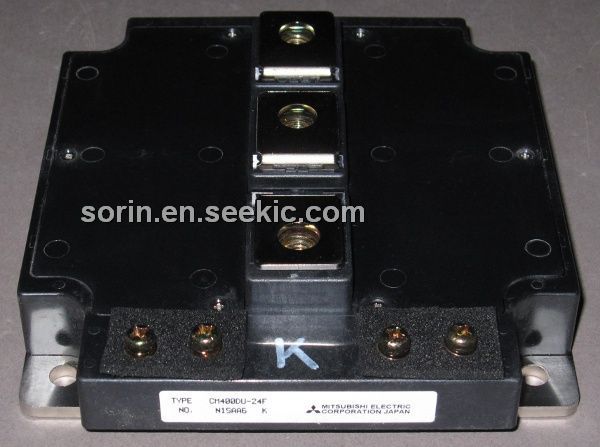

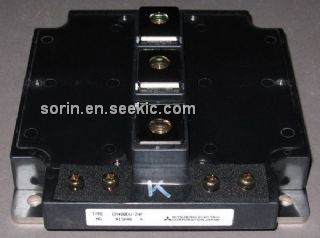

CM400DU-24F
CM400DU-24F

IGBT MOD DUAL 1200V 400A F SER
Data Sheet
0-1: $203.59
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
CM400DU-12F
CM400DU-12F

IGBT MOD DUAL 600V 400A F SER
Data Sheet
0-1: $123.61
CM400DU-12H
CM400DU-12H

IGBT MOD DUAL 600V 400A U SER
Data Sheet
0-1: $133.77
CM400DU-12NFH
CM400DU-12NFH

IGBT MOD DUAL 600V 400A NFH SER
Data Sheet
0-1: $122.22
1-10: $116.32
10-100: $109.57
100-250: $107.89
250-500: $105.36
500-1000: $101.15
CM400DU-24F
CM400DU-24F

IGBT MOD DUAL 1200V 400A F SER
Data Sheet
0-1: $203.59
CM400DU-24H
CM400DU-24H

IGBT MOD DUAL 1200V 400A U SER
Data Sheet
0-1: $220.35
CM400DU-24NFH
CM400DU-24NFH

IGBT MOD DUAL 1200V 400A NFH SER
Data Sheet
0-1: $175.79
