Product Summary

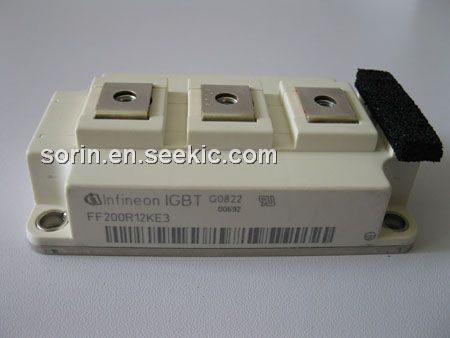

FF200R12KE3 - IGBT-Module - eupec GmbH

Parametrics

Manufacturer:  Infineon

Product Category:  IGBT Transistors

RoHS:  No

Configuration:  Dual

Collector- Emitter Voltage VCEO Max:  1200 V

Collector-Emitter Saturation Voltage:  1.7 V

Maximum Gate Emitter Voltage:  +/- 20 V

Continuous Collector Current at 25 C:  200 A

Gate-Emitter Leakage Current:  400 nA

Power Dissipation:  1.05 KW

Maximum Operating Temperature:  + 125 C

Package / Case:  IS5a ( 62 mm )-7

Minimum Operating Temperature:  - 40 C

Mounting Style:  Screw

Factory Pack Quantity:  500

Diagrams



Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
FF200R12KE3
FF200R12KE3

Infineon Technologies

IGBT Transistors 1200V 200A DUAL

Data Sheet

0-6: $87.41
6-10: $78.67
FF200R12KE3_B2
FF200R12KE3_B2

Infineon Technologies

IGBT Modules N-CH 1.2KV 295A

Data Sheet

0-6: $85.58
6-10: $77.02
