Product Summary

 Manufacturers the    Infineon     product range IGBT module
IGBT Silicon Modules Configuration Dual Common Emitter Common Gate
Collector - Emitter Voltage VCEO 1200 V Collector - emitter saturation voltage 2.1 V
25 C continuous collector current of 1900 A gate - emitter leakage current of 400 nA
7.8 KW Power Dissipation Maximum Operating Temperature + 125 C
Package / Case IHM130 gate / emitter maximum voltage of + / - 20 V
Minimum Operating Temperature - 40 C    Mounting Style SMD / SMT

Parametrics

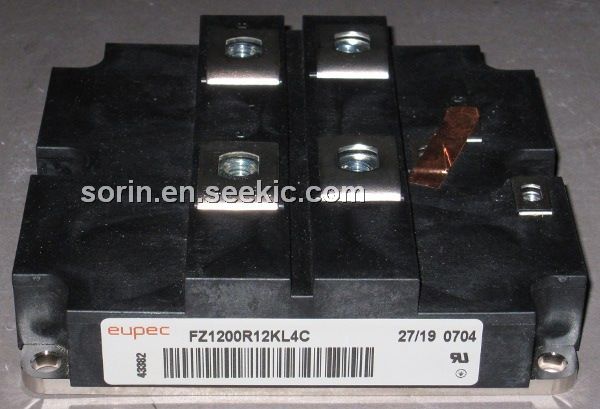

FZ1200R12KL4C Infineon Technologies IGBT Modules 1200V 1200A SINGLE IGBT Modules Pricing and Availability.



Features

IGBT-Wechselrichter / IGBT-inverter



Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
FZ1200R12KL4C
FZ1200R12KL4C
Infineon Technologies
IGBT Modules 1200V 1200A SINGLE
Data Sheet
0-1: $588.01
1-3: $532.53
3-5: $477.06
5-10: $443.78
