Product Summary
MOD THYRISTOR DUAL 1200V TO240A
Parametrics
Datasheets MCC44, MCD44
Product Photos TO-240AA Pkg
Other Related Documents SCR Module Selection Guide
Standard Package 6
Category Semiconductor Modules
Family SCRs
Series -
Structure Series Connection - All SCRs
Number of SCRs, Diodes 2 SCRs
Voltage - Off State 1200V
Current - Gate Trigger (Igt) (Max) 100mA
Current - On State (It (AV)) (Max) 51A
Current - On State (It (RMS)) (Max) 80A
Current - Non Rep. Surge 50, 60Hz (Itsm) 1150A, 1230A
Current - Hold (Ih) (Max) 200mA
Mounting Type Chassis Mount
Package / Case TO-240AA
Packaging Bulk
Features
Thyristor Modules
Thyristor/Diode Modules
Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|

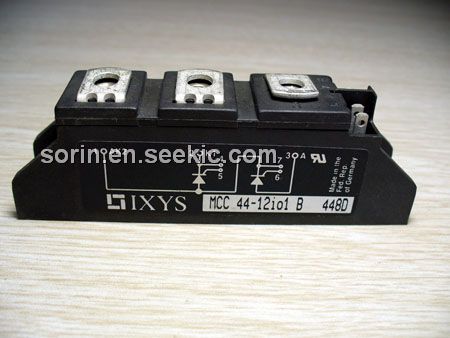

MCC44-12io1B |
Ixys |
Discrete Semiconductor Modules 44 Amps 1200V |
Data Sheet |
Negotiable |
|
|||||||
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||
MCC4408I01B |
THYRISTOR MODULE RECTIFIER |
Data Sheet |
|
|
||||||||
MCC44-08io1B |
Ixys |
Discrete Semiconductor Modules 44 Amps 800V |
Data Sheet |
Negotiable |
|
|||||||
MCC44-08io8B |
Ixys |
Discrete Semiconductor Modules 44 Amps 800V |
Data Sheet |
Negotiable |
|
|||||||
MCC44-12io1B |
Ixys |
Discrete Semiconductor Modules 44 Amps 1200V |
Data Sheet |
Negotiable |
|
|||||||
MCC44-12io8B |
Ixys |
Discrete Semiconductor Modules 44 Amps 1200V |
Data Sheet |
Negotiable |
|
|||||||
MCC44-14io1B |
Ixys |
Discrete Semiconductor Modules 44 Amps 1400V |
Data Sheet |
Negotiable |
|
