Product Summary

It is new and original.New arrival goods.All tested working before shipping.
We have large quantity in our stock.

Parametrics

Item Number:   TD200F12KFC
Manufacturer:   Infineon, Formerly Eupec
Item Category:   Power Modules
Subcategory:   Fast Hybrid SCR-Diode
Series:   TD
  It (avg):    200 Amps
  It (RMS):    410 Amps
  Vrrm:    1,200 Volts
  Circuit:    Hybrid Doubler SCR-Diode w/aux Cath [show info]
Hybrid Doubler SCR-Diode w/aux Cath [hide info]


  Height (mm) Nominal:    52 MilliMeters
  Width (mm) Nominal:    50 MilliMeters
  Depth (mm) Nominal:    115 MilliMeters
  Tq:    25 MicroSeconds
  Igt:    250 MilliAmps
  di/dt (Amps/MicroSec.):    200
  dv/dt (Volts/MicroSec.):    500
  Aux. Cathode(s):    Yes
  Mounting Centers:    80 MilliMeters
  Diag No.:    POWERMOD_SCRDIOD_SIZE_3
  Picture No.:    POWERMOD_SCRDIOD_SIZE_3
  H x W x D (in.):   2.05 x 1.97 x 4.53
  Net Weight:   1 lb 12 oz

Features

PMOD 200A 1200V TQ=25 SCR-DIODE

Diagrams



Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

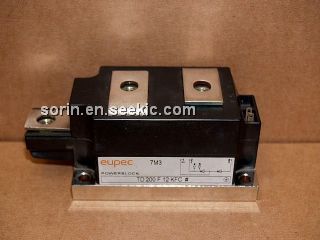

TD200F12KFC
TD200F12KFC

Infineon Technologies

Discrete Semiconductor Modules 1200V 410A

Data Sheet

Negotiable
Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
TD20
TD20

Other


Data Sheet

Negotiable
TD200F10KFC
TD200F10KFC

Infineon Technologies

Discrete Semiconductor Modules 1000V 410A

Data Sheet

0-1: $352.44
1-10: $318.12
TD200F10KSC
TD200F10KSC

Infineon Technologies

Discrete Semiconductor Modules 1000V 410A

Data Sheet

0-1: $430.98
1-10: $388.08
TD200F12KEC
TD200F12KEC

Infineon Technologies

Discrete Semiconductor Modules 1200V 410A

Data Sheet

0-1: $492.98
1-10: $443.69
TD200F12KFC
TD200F12KFC

Infineon Technologies

Discrete Semiconductor Modules 1200V 410A

Data Sheet

Negotiable
TD200F12KSC
TD200F12KSC

Infineon Technologies

Discrete Semiconductor Modules 1200V 410A

Data Sheet

0-1: $543.17
1-10: $488.85
