Product Summary
It is new and original.New arrival goods.All tested working before shipping.
We have large quantity in our stock.
Discrete Semiconductor Modules 1200V 160A DUAL REVERSE CATHODE
Parametrics

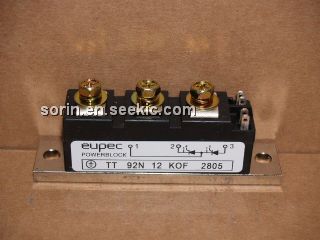

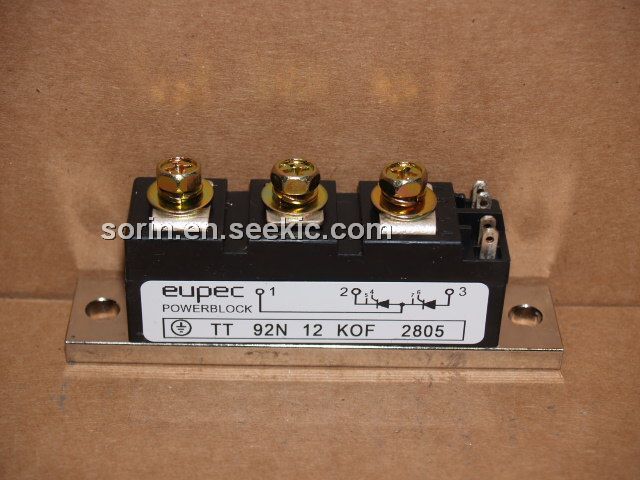

Item Number: TT92N12KOF
Manufacturer: Infineon, Formerly Eupec
Item Category: Power Modules
Subcategory: Standard SCR
Series: TT
It (avg): 92 Amps
It (RMS): 160 Amps
Vrrm: 1,200 Volts
Circuit: SCR Doubler w/aux Cathode [show info]
SCR Doubler w/aux Cathode [hide info]
Height (mm) Nominal: 30 MilliMeters
Width (mm) Nominal: 20 MilliMeters
Depth (mm) Nominal: 92 MilliMeters
Tq: 150 MicroSeconds
Igt: 120 MilliAmps
di/dt (Amps/MicroSec.): 150
dv/dt (Volts/MicroSec.): 1,000
Aux. Cathode(s): Yes
Mounting Centers: 80 MilliMeters
Comments: Lead sets sold separately.
Diag No.: POWERMOD_SCR_SIZE_1
Picture No.: POWERMOD_SCR_SIZE_1
H x W x D (in.): 1.18 x .79 x 3.62
Net Weight: 5.64 OZ
Gross Weight: 5.36 OZ
Features
Specifications: Manufacturer: Infineon ; Product Category: Discrete Semiconductor Modules ; RoHS: Details ; Type: Phase Control Thyristor Module ; Output Current: 160 A ; Factory Pack Quantity: 10
Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TT92N12KOF |
Infineon Technologies |
Discrete Semiconductor Modules 1200V 160A DUAL |
Data Sheet |
|
|
|||||||||
TT92N12KOFB4 |
Infineon Technologies |
Discrete Semiconductor Modules 1200V 160A DUAL REVERSE CATHODE |
Data Sheet |
|
|
|||||||||
TT92N12KOF-K |
Infineon Technologies |
SCRs PCT 1200V 92A |
Data Sheet |
|
|
