Product Summary

The 25FXF12 is a controlled avalanche rectifier. Its applications include Inverters, Servo drives, DC Motor control, Motion Control, Servo Contol, UPS, Welding power supplies, Robotics, Forklifts, Welders, NC euuipment.

Parametrics

25FXF12 absolute maximum ratings: (1)Repetitive peak reverse voltage, VRRM: 3000V; (2)Peak reverse power dissipation, RRSM: 8kW; (3)Average forward current, IF: 25A; (4)Peak one cycle surge forward, IFSM: 500A; (5)Junction temperature, Tj: -40 to 175℃; (6)Storage temperature range, Tstg: -40 to 175℃.

Features

25FXF12 features: (1)Short reverse recovery time; (2)Variety of connection Menu; (3)Easy connection; (4)Glass passivation chip.

Diagrams

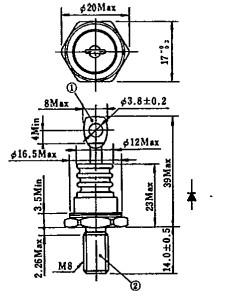

25FXF12 diagram
