Product Summary

The 74HC377DB high-speed Si-gate CMOS logic combines the low power advantages of the HE4000B family with the high speed and drive capability of the low power Schottky TTL (LSTTL). The 74HC377DB will has the same pin-out as the 74 series and provide the same circuit functions.

Parametrics

74HC377DB absolute maximum ratings: (1)DC supply voltage, VCC: 2.0 to 6.0V; (2)DC input voltage range, VI: 0 to VCC; (3)DC output voltage range, VO: 0 to VCC; (4)operating ambient temperature range, Tamb: -40 to +85℃; (5)operating ambient temperature range, Tamb: -40 to +125℃.

Features

74HC377DB features: (1)include several HE4000B family circuits; (2)operate at CMOS input logic levels; (3)high noise immunity; (4)negligible typical quiescent supply and input current.

Diagrams

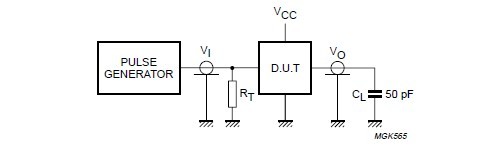

74HC377DB Test circuit
