Product Summary
The MXL5007T is a highly integrated low power silicon tuner targeting global digital terrestrial broadcast standards. (DVB-T/H, ATSC, DTMB). Based on MaxLinear’s breakthrough implementation of a silicon tuner in pure digital CMOS, the MXL5007T delivers exceptional performance at the lowest power consumption, smallest size and lowest cost. The applications of the MXL5007T are Digital Televisions, Set-Top Boxes, PCTV Applications, Mobile / Portable Applications, Automotive Applications, Tuner Modules.
Features
MXL5007T features: (1)44MHz to 885MHz tuning range; (2)Programmable IF output; (3)Programmable channel flter BW of 6/7/8MHz; (4)Programmable IF spectrum inversion; (5)Reference clock output; (6)Integrated Loop-through; (7)I2C compatible interface; (8)QFN 32 Package, 5x5mm.

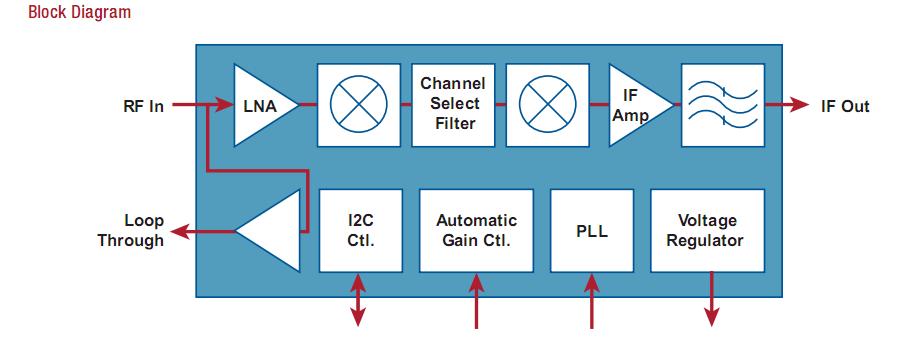

Diagrams
