Product Summary

The MC33274ADG monolithic operational amplifier is quality fabricated with innovative Bipolar design concepts. This dual and quad operational amplifier incorporates Bipolar inputs along with a patented Zip-R-Trim element for input offset voltage reduction. The MC33274ADG operational amplifier exhibits low input offset voltage and high gain bandwidth product. Dual-doublet frequency compensation is used to increase the slew rate while maintaining low input noise characteristics. Its all NPN output stage exhibits no deadband crossover distortion, large output voltage swing, and an excellent phase and gain margin. The MC33274ADG also provides a low open loop high frequency output impedance with symmetrical source and sink AC frequency performance.

Parametrics

MC33274ADG absolute maximum ratings: (1)Supply Voltage: +36 V; (2)Output Short Circuit Duration: Indefinite sec; (3)Maximum Junction Temperature: +150 ℃; (4)Storage Temperature: -60 to +150 ℃; (5)ESD Protection at Any Pin: Human Body Model: 2000 V, Machine Model: 200 V; (6)Operating Temperature Range: -40 to +85 ℃.

Features

MC33274ADG features: (1)Input Offset Voltage Trimmed to 100 μV (Typ); (2)Low Input Bias Current: 300 nA; (3)Low Input Offset Current: 3.0 nA; (4)High Input Resistance: 16 MΩ; (5)High Gain Bandwidth Product: 24 MHz @ 100 kHz; (6)High Slew Rate: 10 V/μs; (7)Power Bandwidth: 160 kHz; (8)Excellent Frequency Stability; (9)Unity Gain Stable: w/Capacitance Loads to 500 pF; (10)Large Output Voltage Swing: +14.1 V/ .14.6 V; (11)Low Total Harmonic Distortion: 0.003%; (12)Power Supply Drain Current: 2.15 mA per Amplifier; (13)Single or Split Supply Operation: +3.0 V to +36 V or ±1.5 V to ±18 V; (14)ESD Diodes Provide Added Protection to the Inputs; (15)Pb.Free Packages are Available; (16)NCV Prefix for Automotive and Other Applications Requiring Site and Control Changes.

Diagrams

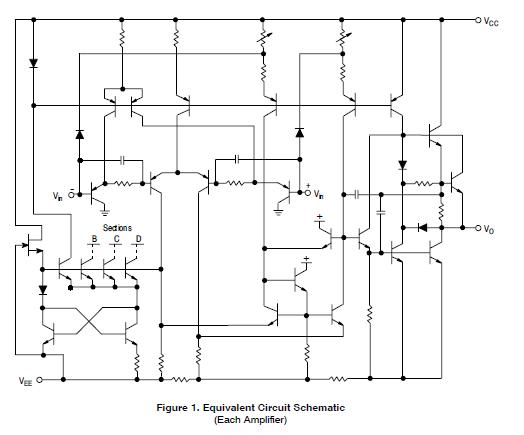

MC33274ADG Equivalent Circuit Schematic

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

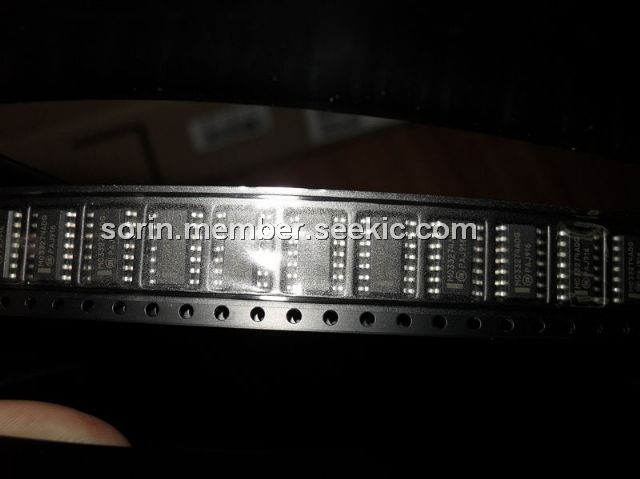

MC33274ADG
MC33274ADG

ON Semiconductor

Operational Amplifiers - Op Amps 3-36V Quad Low Noise Low VIO Ind. Temp

Data Sheet

0-1: $0.87
1-25: $0.77
25-100: $0.56
100-500: $0.48
