Product Summary

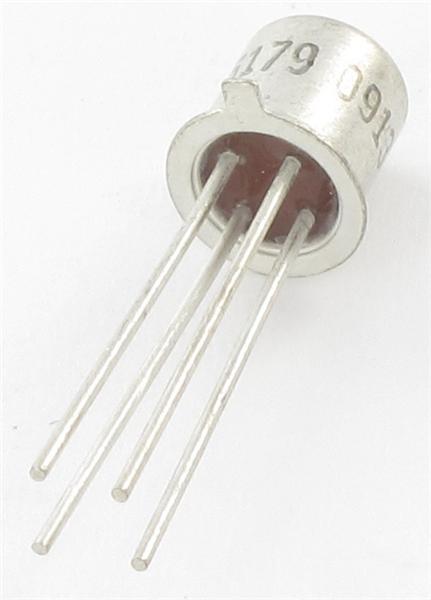

The 2N5179 is a silicon planar epitaxial NPN transistor in Jedec TO-72 metal case, intended for low- noise tuned-amplifier and converter applications up to 500 MHz.
Parametrics
2N5179 absolute maximum ratings: (1)Collector-base Voltage (IE = 0):20V; (2)Coliector-ermitter Voltage (IB = 0):12V; (3)Emitter-base Voltage (lc = 0):2.5V; (4)Collector Current:50mA; (5)Total Power Dissipation at Tamb=25 °C:200mW;at Tcase - 25 °C: 300mW; (6)Storage and Junction Temperature:-65 to 200°C.
Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
![]() 2N5179 |
![]() Central Semiconductor |
![]() Transistors Bipolar (BJT) NPN VHF Amp |
![]() Data Sheet |
![]()
|
|
||||||||||||
