Product Summary

The Freescale MPXHZ6400AC6T1 sensor integrates on-chip, bipolar op amp circuitry and thin film resistor networks to provide a high output signal and temperature compensation. The small form factor and high reliability of on-chip integration make the Freescale pressure sensor a logical and economical choice for the system designer. The applications of the MPXHZ6400AC6T1 include Industrial Controls, Engine Control/Liquified Petroleum Gas (LPG).

Parametrics

MPXHZ6400AC6T1 absolute maximum ratings: (1)Maximum Pressure: 1600 kPa; (2)Storage Temperature: -40℃ to +125℃; (3)Operating Temperature: -40℃ to +125℃; (4)Output Source Current @ Full Scale Output: 0.5 mAdc; (5)Output Sink Current @ Minimum Pressure Offset: -0.5 mAdc.

Features

MPXHZ6400AC6T1 features: (1)Improved Accuracy at High Temperature; (2)Available in Small and Super Small Outline Packages; (3)1.5% Maximum Error over 0℃ to 85℃; (4)Ideally suited for Microprocessor or Microcontroller-Based Systems; (5)Temperature Compensated from -40℃ to +125℃; (6)Durable Thermoplastic (PPS) Surface Mount Package.

Diagrams

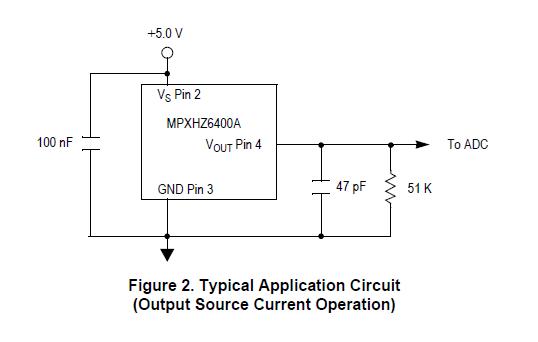

MPXHZ6400AC6T1 Typical Application Circuit diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

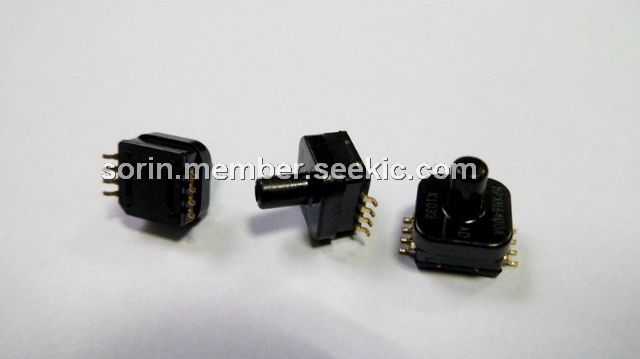

MPXHZ6400AC6T1
MPXHZ6400AC6T1
Freescale Semiconductor
Board Mount Pressure / Force Sensors SSOP INTEG W/PORT SIFEL
Data Sheet
0-1: $5.56
1-25: $5.02
25-50: $4.30
50-100: $3.48
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
MPXH6101A
MPXH6101A
Other

Data Sheet
Negotiable
MPXH6101A6T1
MPXH6101A6T1
Freescale Semiconductor
Board Mount Pressure / Force Sensors SSOP INTEGRATED
Data Sheet
0-1: $5.59
1-25: $5.26
25-100: $5.03
100-500: $4.48
500-1000: $3.22
MPXH6101A6U
MPXH6101A6U
Freescale Semiconductor
Board Mount Pressure / Force Sensors SSOP INTEGRATED
Data Sheet
0-1: $5.14
1-25: $4.64
25-50: $3.98
50-100: $3.22
MPXH6101AC6T1
MPXH6101AC6T1
Freescale Semiconductor
Board Mount Pressure / Force Sensors INTEGRATED SSOP W PORT
Data Sheet
0-1: $6.50
1-25: $6.13
25-100: $3.83
100-300: $3.83
MPXH6101AC6U
MPXH6101AC6U
Freescale Semiconductor
Board Mount Pressure / Force Sensors INTEGRATED SSOP W/PORT
Data Sheet
0-1: $6.13
1-25: $5.53
25-50: $4.73
50-100: $3.83
MPXH6115A
MPXH6115A
Other

Data Sheet
Negotiable
