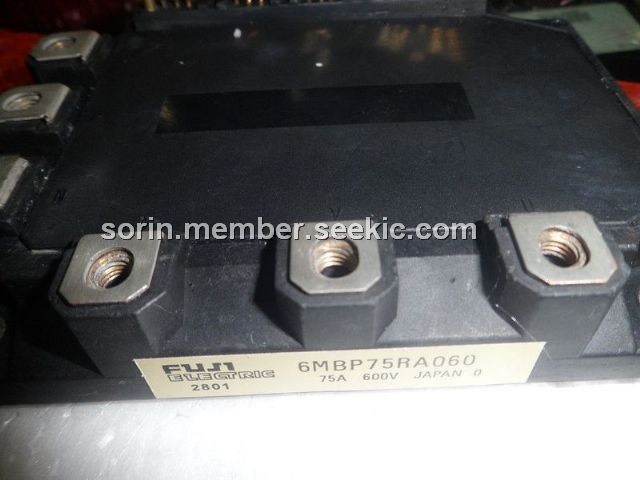

The 6MBP75RA060 is an IGBT module.
Parametrics
6MBP75RA060 absolute maximum ratings: (1)DC bus voltage:0 to 450V;(2)DC bus voltage (surge):0 to 500V;(3)DC bus voltage(short operating):200 to 400V;(4)Collector-Emitter voltage:0 to 600V;(5)Collector current:DC:75A;1ms:150A;Duty=61.7%:75A;(6)Junction temperature:150°C;(7)Input voltage of power supply for Pre-Driver(Vcc):0 to 20V;(8)Input signal voltage:0 to VZ V;(9)Input signal current:1 mA;(10)Alarm signal voltage:0 to Vcc V;(11)Alarm signal current:15 mA;(12)Storage temperature:-40 to 125°C; (13)Operating case temperature:-20 to 100°C;(14)Isolating voltage(Case-Terminal):AC2.5kV;(15)Screw torque:Mounting (M5):3.5N•m;Terminal（M5）3.5N•m.
Features
6MBP75RA060 features: (1)Temperature protection provided by directly detecting the junction temperature of the IGBTs; (2) Low power loss and soft switching; (3)High performance and high reliability IGBT with overheating protection; (4)Higher reliability because of a big decrease in number of parts in built-in control circuit.

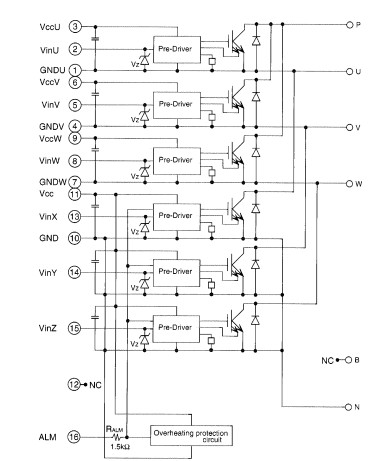

Diagrams
 |
