Product Summary
The MC13892AJVL is a Power Management and User Interface component for processors, targeting netbooks, ebooks, mobile internet devices, smart phones, personal media players and personal navigation devices.
Parametrics
MC13892AJVL absolute maximum ratings: (1)Charger and USB Input Voltage, VCHRGR: -0.3 to 20V; (2)MODE pin Voltage, VMODE: -0.3 to 9.0V; (3)Main/Aux/Keypad Current Sink Voltage, VLEDMD, VLEDAD, VLEDKP: -0.3 to 28V; (4)Battery Voltage, VBATT: -0.3 to 4.8V; (5)Coin Cell Voltage, VLICELL: -0.3 to 3.6V; (6)ESD Voltage, Human Body Model, HBM with Mode pin excluded, VESD: ±1500V; (7)ESD Voltage, Charge Device Model, CDM, VESD: ±250V.
Features
MC13892AJVL features: (1)Battery charger system for wall charging and USB charging; (2)10 bit ADC for monitoring battery and other inputs, plus a coulomb counter support module; (3)4 adjustable output buck converters for direct supply of the processor core and memory; (4)12 adjustable output LDOs with internal and external pass devices; (5)Boost converter for supplying RGB LEDs; (6)Serial backlight drivers for displays and keypad, plus RGB LED drivers; (7)Power control logic with processor interface and event detection; (8)Touch screen interface; (9)SPI/I2C bus interface for control and register access; (10)Two package offerings in 7 X 7 mm and 12 X 12 mm.

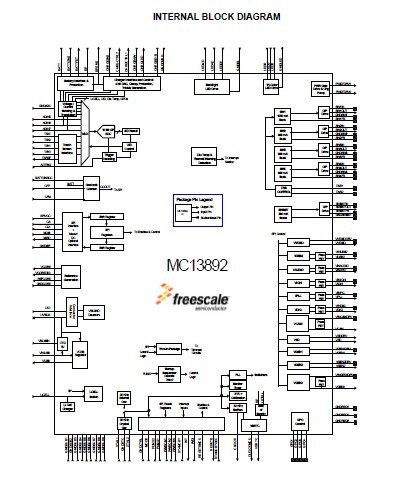

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 MC13892AJVL |
Freescale Semiconductor |
PMIC Solutions PMUIC W/4 BUCK/12 LDO RG |
Data Sheet |
Negotiable |
|
||||
|
MC13892AJVLR2 |
Freescale Semiconductor |
PMIC Solutions PMUIC W/4 BUCK/12 LDO RG |
Data Sheet |
Negotiable |
|
||||
