Product Summary

The V28C12M100BL3 is a DC-DC Converter Module with advanced power processing, control and packaging technologies. The V28C12M100BL3 provides the performance, flexibility, reliability and cost effectiveness of a mature power component. The applications of the V28C12M100BL3 are Industrial and process control, distributed power, medical, ATE, communications, defense, aerospace.

Parametrics

V28C12M100BL3 absolute maximum ratings: (1)+In to -In voltage:-0.5 to +53 Vdc; (2)PC to -In voltage:-0.5 to +7.0 Vdc; (3)PR to -In voltage:-0.5 to +7.0 Vdc; (4)SC to -Out voltage:-0.5 to +1.5 Vdc; (5)Operating Temperature:-55 to +100℃ ; (6)Storage Temperature:-65 to +125℃.

Features

V28C12M100BL3 features: (1)DC input range: 9 to 36 V; (2)Input surge withstand: 50 V for 100 ms; (3)DC output: 3.3 to 48 V; (4)Programmable output: 10 to 110%; (5)Regulation: ±0.4% no load to full load; (6)Efficiency: Up to 81%; (7)Maximum operating temp: 100℃, full load; (8)Power density: up to 60 W per cubic inch; (9)Height above board: 0.43 in. (10,9 mm); (10)Parallelable, with N+M fault tolerance; (11)Low noise ZCS / ZVS architecture.

Diagrams

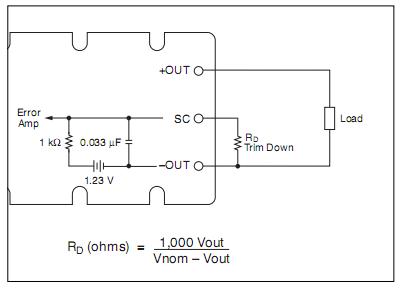

V28C12M100BL3 circuit diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
V28C12M100BL3
V28C12M100BL3


CONVERTER MOD DC/DC 12V 100W

Data Sheet

0-1: $178.80
