Product Summary
The SP3072EMN differential line transceiver is suitable for bidirectional communication on balanced multipoint bus transmission lines and comply with both RS485 and RS422 EIA Standards. Each device consists of a differential driver and differential receiver. The SP3072EMN operates from a 3.3V power supply. High receiver input impedance allows a large number of transceivers to share a common data bus while maintaining signal margin and without excessive loading or use of expensive repeaters.
Parametrics
SP3072EMN absolute maximum ratings: (1)VCC:+6.0V; (2)Input Voltage at control input pins (RE, DE):-0.3V to 6V; (3)Driver Input Voltage (RE, DE):-0.3V to 6V; (4)Driver Output Voltage (A, B, Y, & Z):-8V to +13V; (5)Receiver Input Voltage (A, B):-8V to +13V; (6)Continuous Power Dissipation at Ta = 70°C:8-pin SO (derate 5.88mW/oC above +70°C):471mW;8-pin PDIP (derate 9.29mW/°C above +70°C):727mW;14-pin SO (derate 8.33mW/°C above +70°C):667mW;14-pin PDIP (derate 10mW/ °C above +70°C):800mW; (7)Operating Temperature Ranges:SP3072EMN:-40°C to +125°C; (8)Junction Temperature:+150°C; (9)Storage Temperature Range:-65°C to +150°C; (10)Lead Temperature (soldering, 10s):+300°C.
Features
SP3072EMN features:(1)±15kV ESD protection for RS485 pins; (2)3.3V low-power operation; (3) Advanced Receiver-failsafe protection for open, shorted or terminated lines; (4)Up to 256 Transceivers may share Bus; (5)Very low load for 8x greater fanout; (6) Hot Swap glitch protection RE and DE; (7)Thermal shutdown protects against driver contention; (8) Available in three industry standard footprints :SP3072EMN in Half-Duplex (8 pin); (9)Three applications-optimized speed grades:SP3072EMN: 250kbps slew-limited; (10)Small form factor SO-narrow packages; (11)Industrial (-40 to +85°C) and Extended (-40 to +85°C) temperature grades.

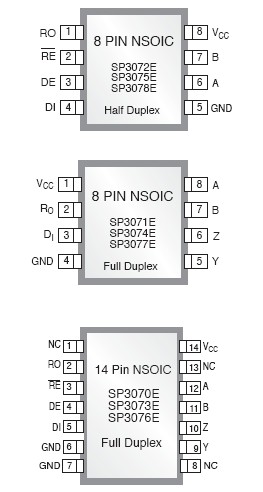

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 SP3072EMN-L |
Exar |
RS-422/RS-485 Interface IC RS485/RS422 Driver/ Receiver Transceiver |
Data Sheet |
|
|
||||||||||||
|
SP3072EMN-L/TR |
Exar |
RS-422/RS-485 Interface IC RS485/RS422 Driver/ Receiver Transceiver |
Data Sheet |
|
|
||||||||||||
