Product Summary

The STM32F103RET6 is a High-density performance line ARM-based 32-bit MCU with 256 to 512KB Flash, USB, CAN, 11 timers, 3 ADCs, 13 communication interfaces. The STM32F103RET6 incorporates the high-performance ARM Cortex-M3 32-bit RISC core operating at a 72 MHz frequency, high-speed embedded memories (Flash memory up to 512 Kbytes and SRAM up to 64 Kbytes), and an extensive range of enhanced I/Os and peripherals connected to two APB buses. The STM32F103RET6 offers three 12-bit ADCs, four general-purpose 16-bit timers plus two PWM timers, as well as standard and advanced communication interfaces: up to two I2Cs, three SPIs, two I2Ss, one SDIO, five USARTs, an USB and a CAN.

Parametrics

STM32F103RET6 absolute maximum ratings: (1)VDD–VSS, External main supply voltage (including VDDA and VDD): –0.3 to 4.0V; (2)VIN, Input voltage on five volt tolerant pin: VSS - 0.3 to VDD + 4.0V; (3)Input voltage on any other pin: VSS - 0.3 to 4.0V; (4)|ΔVDDx|, Variations between different VDD power pins: 50mV; (5)|VSSX - VSS|, Variations between all the different ground pins: 50mV.

Features

STM32F103RET6 features: (1)Core: ARM 32-bit Cortex-M3 CPU: 72 MHz maximum frequency, 1.25 DMIPS/MHz (Dhrystone 2.1) performance at 0 wait state memory; (2)access; Single-cycle multiplication and hardware division; (3)Memories: 256 to 512 Kbytes of Flash memory; up to 64 Kbytes of SRAM; Flexible static memory controller with 4 Chip Select. Supports Compact Flash, SRAM, PSRAM, NOR and NAND memories; LCD parallel interface, 8080/6800 modes; (4)2.0 to 3.6 V application supply and I/Os ; (5)POR, PDR, and programmable voltage detector (PVD); (6)4-to-16 MHz crystal oscillator; (7)Internal 8 MHz factory-trimmed RC; (8)Internal 40 kHz RC with calibration; (9)32 kHz oscillator for RTC with calibration.

Diagrams

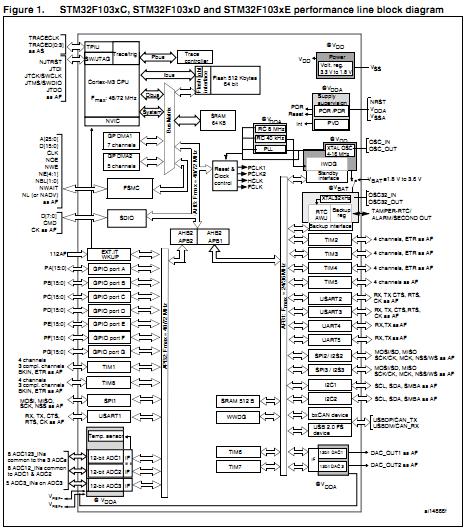

STM32F103RET6 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

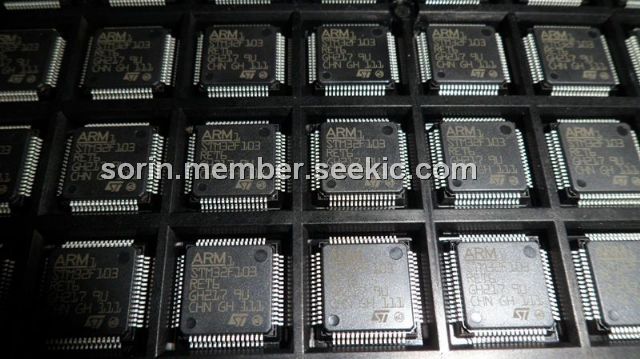

STM32F103RET6
STM32F103RET6

STMicroelectronics

ARM Microcontrollers (MCU) 32BIT Cortex M3 Performance LINE

Data Sheet

0-1: $5.30
1-10: $4.82
10-100: $4.10
100-250: $3.74
STM32F103RET6TR
STM32F103RET6TR

STMicroelectronics

ARM Microcontrollers (MCU) 32BIT Cortex M3 H/D Performance LINE

Data Sheet

0-691: $3.49
691-1000: $3.20
1000-2000: $3.07
