Product Summary

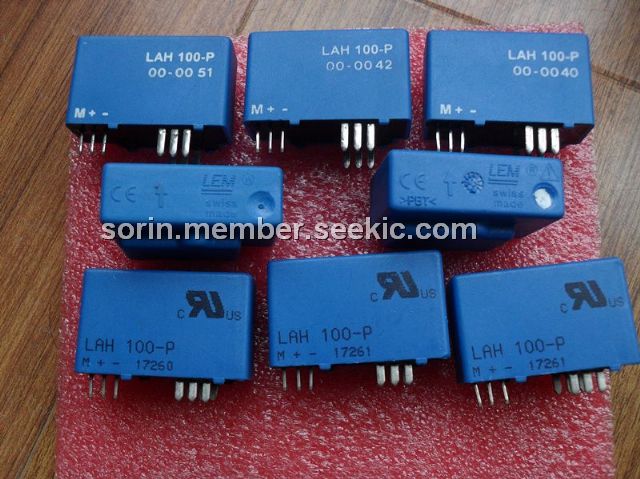

The LAH100-P is a current Transducer. The applications of the LAH100-P include: (1)AC variable speed drives and servo motor drives; (2)Static converters for DC motor drives; (3)Battery supplied applications; (4)Uninterruptible Power Supplies(UPS); (5)Switched Mode Power Supplies(SMPS); (6)Power supplies for welding applications.
Parametrics
LAH100-P electrical data: (1)IPN, Primary nominal current rms: 100 A; (2)IPM, Primary current, measuring range: 0 to 160 A; (3)ISN, Secondary nominal current rms: 50 mA; (4)KN, Conversion ratio: 1 : 2000; (5)VC, Supply voltage (± 5 %): ± 12 to 15 V; (6)IC, Current consumption: 10 (@ ± 15V) + IS mA.
Features
LAH100-P features: (1)Closed loop (compensated) current transducer using the Hall effect; (2)Printed circuit board mounting; (3)Insulated plastic case recognized according to UL 94-V0.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 LAH100-P |
Other |
|
Data Sheet |
Negotiable |
|
||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||
|
LAH100-P |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
LAH125-P |
Other |
|
Data Sheet |
Negotiable |
|
||||
