Product Summary

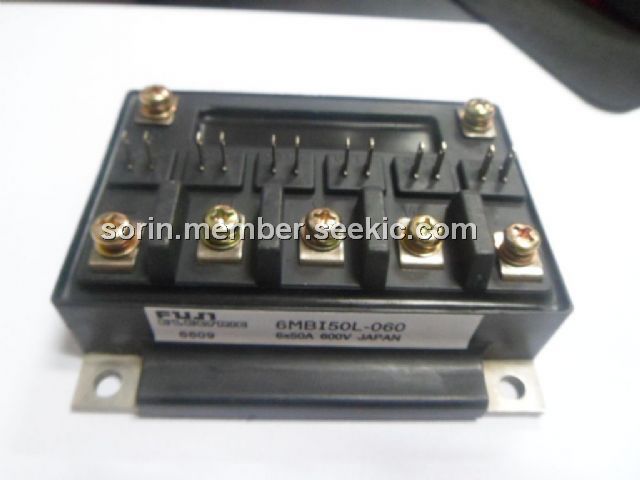

The 6MBI50l-060 is an IGBT module.And it is used in inverter for Motor Drive, AC and DC Servo Drive Amplifier, uninterruptible power supply,industrial machine and so on.

Parametrics

6MBI50l-060 absolute maximum ratings: (1)Collecter-Emitter Voltage:600V; (2)Gate-Emitter Voltaue:±20V;(3)Collecter Current:Continuous:50A; 1ms:100A; (4)Max . Power Dissipation :250 W; (5)Operating Temperature:+150 °C; (6)Sto rage Temperature :- 40 to +125 °C; (7)Net. Weight:510 g; (8)Isolat ion Voltage (AC.1min):2500 V; (9)Screw Torque:Mounting:35kg.cm;Terminals :17kg.cm.

Features

6MBI50l-060 features: (1)High Speed Switching; (2)Low Saturation Voltage; (3)Voltage Drive.

Diagrams

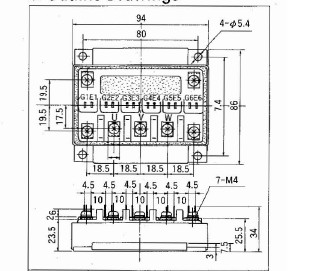

6MBI50l-060 Dimension
