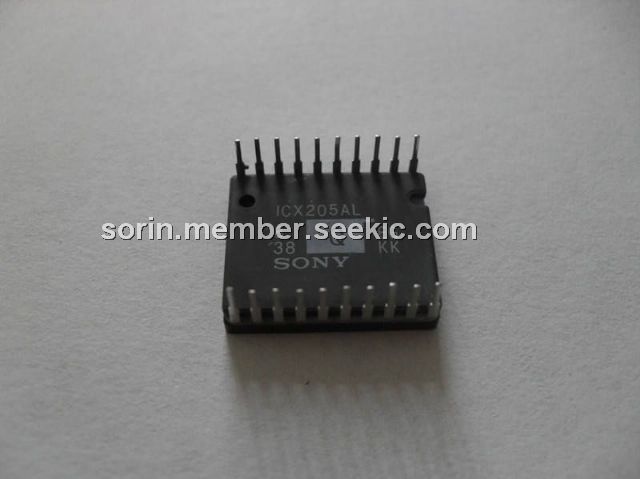

ICX205AL

Product Summary

The ICX205AL is a diagonal 8mm (Type 1/2) interline CCD solid-state image sensor with a square pixel array and 1.45M effective pixels. Progressive scan of the ICX205AL allows all pixels signals to be output independently within approximately 1/7.5 second. Also, the adoption of high frame rate readout mode supports 30 frames per second. This ICX205AL features an electronic shutter with variable charge-storage time which makes it possible to realize full-frame still image without a mechanical shutter. High sensitivity and low dark current are achieved through the adoption of HAD (Hole-Accumulation Diode) sensors. This ICX205AL is suitable for applications such as electronic still cameras, PC input cameras, etc.

Parametrics

ICX205AL absolute maximum ratings: (1)Against φSUB: VDD, VOUT, φRG – φSUB: –40 to +10 v; Vφ2A, Vφ3B – φSUB: –50 to +15v; Vφ1, Vφ3, VL – φSUB: –50 to +0.3v; Hφ1, Hφ2, GND – φSUB : –40 to +0.3v; CSUB – φSUB: –25 v to; (2)Against GND: VDD, VOUT, φRG, CSUB – GND: –0.3 to +18v; Vφ1, Vφ2A, Vφ2B, Vφ3 – GND: –10 to +18v; Hφ1, Hφ2 – GND: –10 to +15 v; (3)Against VL: Vφ2A, Vφ2B – VL: –0.3 to +28 v; Vφ1, Vφ3, Hφ1, Hφ2, GND – VL: –0.3 to +15v; (4)Between input clock pins: Voltage difference between vertical clock input pins: to +15 v; Hφ1 – Hφ2: –16 to +16v; Hφ1, Hφ2 – Vφ3: –16 to +16; (5)Storage temperature: –30 to +80℃; (6)Operating temperature: –10 to +60℃.

Features

ICX205AL features: (1)Progressive scan allows individual readout of the image signals from all pixels; (2)High horizontal and vertical resolution (both approx. 1024TV-lines) still image without a mechanical shutter; (3)Supports high frame rate readout mode (effective 256 lines output, 30 frame/s); (4)Square pixel; (5)Horizontal drive frequency: 14.318MHz; (6)No voltage adjustments (reset gate and substrate bias are not adjusted.); (7)High resolution, high sensitivity, low dark current; (8)Low smear, excellent antiblooming characteristics; (9)Continuous variable-speed shutter.

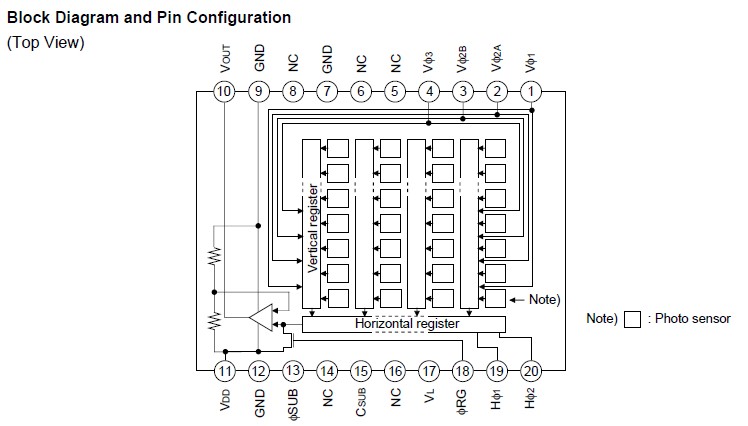

Diagrams
