Product Summary

The STPS30150CFP is a dual center tap schottky rectifier designed for high frequency Switched Mode Power Supplies.

Parametrics

STPS30150CFP absolute ratings: (1)VRRM, Repetitive peak reverse voltage: 150 V; (2)IF(RMS), RMS forward current: 30 A; (3)IF(AV), Average forward current, δ = 0.5: TO-220FPAB Tc = 120℃ per diode: 15 A; per device, TO-220AB/D2PAK Tc = 155℃: 15 A; TO-247: 30A; (4)IFSM, Surge non repetitive forward current, tp = 10 ms sinusoidal: 220 A; (5)PARM, Repetitive peak avalanche power, tp = 1μs Tj = 25℃: 10500 W; (6)Tstg, Storage temperature range: - 65 to + 175 ℃; (7)Tj, Maximum operating junction temperature: 175 ℃; (8)dV/dt, Critical rate of rise of reverse voltage: 10000 V/μs.

Features

STPS30150CFP features: (1)high junction temperature capability; (2)good trade off between leakage current and forward voltage drop; (3)low leakage current; (4)insulated package: to-220fpab; insulating voltage: 2000v dc; capacitance: 45pf; (5)avalanche capability specified.

Diagrams

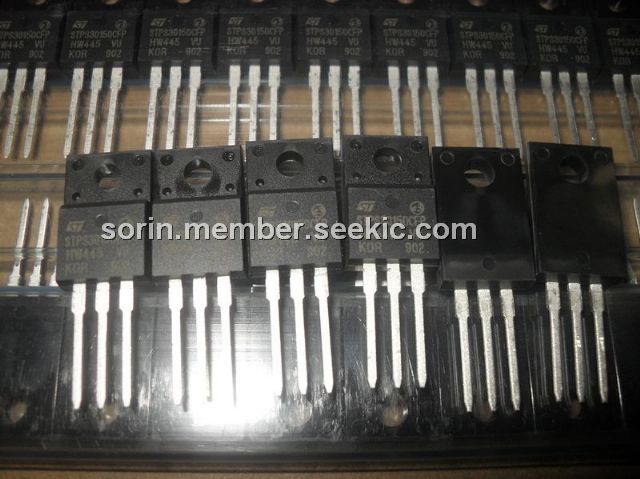

STPS30150CFP diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
STPS30150CFP
STPS30150CFP
STMicroelectronics
Schottky (Diodes & Rectifiers) 2X15 Amp 150 Volt
Data Sheet
0-690: $0.82
690-1000: $0.76
1000-2000: $0.75
2000-5000: $0.73
