Product Summary
The MAX6675ISA is a Cold-Junction-Compensated K-Thermocouple-to-Digital Converter. The MAX6675ISA performs cold-junction compensation and digitizes the signal from a type-K thermocouple. The data is output in a 12-bit resolution, SPI-compati-ble, read-only format. This converter resolves temperatures to 0.25℃, allows readings as high as +1024℃, and exhibits thermocouple accuracy of 8LSBs for temperatures ranging from 0℃ to +700℃. The MAX6675ISA is available in a small, 8-pin SO package. The applications of the MAX6675ISA include Industrial, Appliances, HVAC and Automotive.
Parametrics
MAX6675ISA absolute maximum ratings: (1)Supply Voltage (VCC to GND): -0.3V to +6V; (2)SO, SCK, CS, T-, T+ to GND: -0.3V to VCC + 0.3V; (3)SO Current: 50mA; (4)ESD Protection (Human Body Model): ±2000V; (5)Continuous Power Dissipation : 471mW; (6)Operating Temperature Range: -20℃ to +85℃; (7)Storage Temperature Range: -65℃ to +150℃; (8)Junction Temperature: +150℃; (9)Lead Temperature (soldering, 10s): +300℃.
Features
MAX6675ISA features: (1)Direct Digital Conversion of Type -K Thermocouple Output; (2)Cold-Junction Compensation; (3)Simple SPI-Compatible Serial Interface; (4)12-Bit, 0.25℃ Resolution; (5)Open Thermocouple Detection.

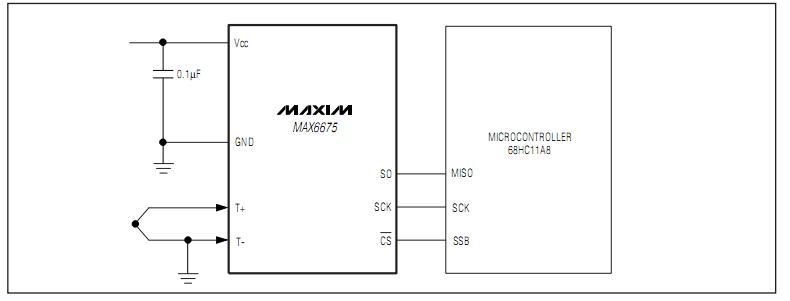

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MAX6675ISA |
Maxim Integrated Products |
Data Conversion ICs - Various |
Data Sheet |
Negotiable |
|
||||||||||||
|
MAX6675ISA+ |
Maxim Integrated Products |
Data Conversion ICs - Various K Thermocouple to Digital Converter |
Data Sheet |
|
|
||||||||||||
|
MAX6675ISA+T |
Maxim Integrated Products |
Data Conversion ICs - Various K Thermocouple to Digital Converter |
Data Sheet |
|
|
||||||||||||
 |
MAX6675ISA-T |
Maxim Integrated Products |
Data Conversion ICs - Various |
Data Sheet |
Negotiable |
|
||||||||||||
