Product Summary

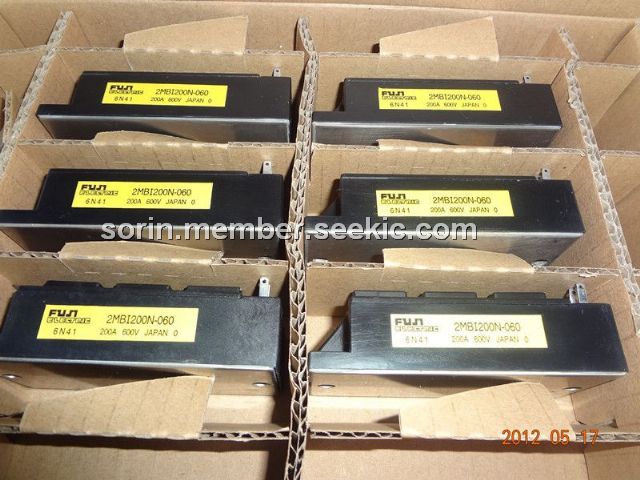

The 2MBI200N-060 is an IGBT module.And it is used in high power switching, A.C. motor control, D.C. Motor Control, uninterruptible power supply.
Parametrics
2MBI200N-060 absolute maximum ratings: (1)Collector-Emitter voltage:600V; (2)Gate-Emitter voltage:±20V; (3)Collector current:Continuous:200A;1ms:400A; (4)Max. power dissipation:780W; (5)Operating temperature: +150°C; (6)Storage temperature:-40 to +125°C; (7)Isolation voltage:AC 2500 (1min.)V; (8)Screw torque: Mounting:3.5N.m;Terminals:3.5N.m.
Features
2MBI200N-060 features: (1) Square RBSOA; (2) Low Saturation Voltage; (3) Less Total Power Dissipation; (4) Improved FWD Characteristic; (5) Minimized Internal Stray Inductance; (6) Overcurrent Limiting Function (~3 Times Rated Current).
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 2MBI200N-060 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
2MBI200N-060-03 |
Other |
|
Data Sheet |
Negotiable |
|
||||
