Product Summary
The DS1260-100 SmartBattery is a low-cost, backup energy supply for portable and nonvolatile electronic equipment. A lithium energy source of up to 1 amp hour can supply power to CMOS electronic circuits when primary power is lost through an intelligent and efficient switch. The DS1260-100 can be plugged into a standard 16-pin, low-cost DIP socket, allowing for proven interconnect and simple replacement if the energy has been exhausted.
Parametrics
DS1260-100 absolute maximum ratings: (1)Voltage on Any Pin Relative to Ground:-0.3V to +7.0V; (2)Operating Temperature:0℃ to 70℃; (3)Storage Temperature:-40℃ to +70℃; (4)Soldering Temperature:260℃ for 10 seconds.
Features
DS1260-100 features: (1)Encapsulated lithium energy cell with shelf life beyond 10 years; (2)Available with energy capacities of 250, 500, and 1,000 mAH @ 3 volts; (3)Plugs into a standard 16-pin DIP socket; (4)Lithium cell electrically disconnects from exposed pins upon command; (5)Battery isolation ensures full capacity after shipping and handling; (6)Lithium cell automatically reconnects when VCC is applied; (7)Recessed pins prevent bending; (8)VCC fail signal interrupts processor or write-protects memory; (9)Exhausted energy cell warning signal; (10)Low profile permits mounting on 0.5-inch printed circuit board centers; (11)Mates directly with DS1212 Nonvolatile Controller to back up 16 SRAMs; (12)Uninterruptible supply for CMOS and portable devices.

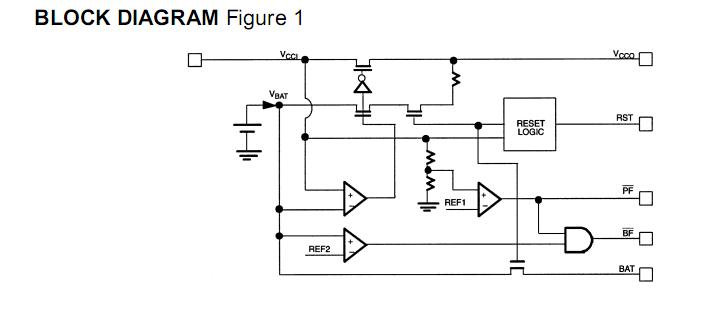

Diagrams
