74F151A

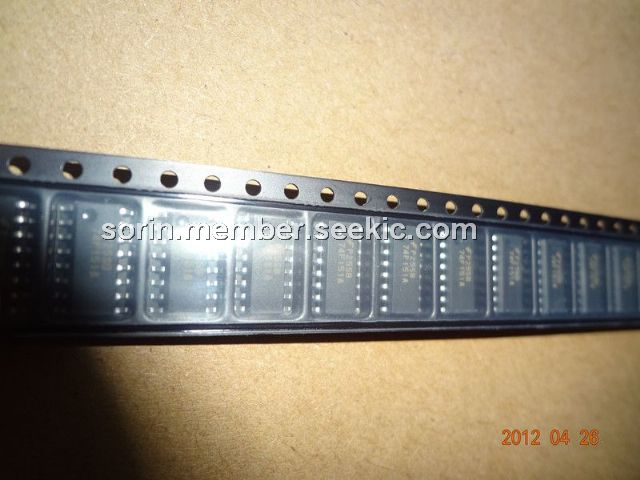

74F151A, 8-input multiplexer, universal function generator, SOP16

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.30~0.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.30~0.50

PartNumber:: 74F151A

Brand:: Fairchild Semiconductor - Fairchild | Pack: SOP | D/C: 09+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Rose's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-05-27

From Other Seller

Part Number:74F151A
US $0.30 - 0.50
EKY-160ELL121MF11D

US $0.10 - 1.00 / Piece
(0) Remove
ECA1HHG220

US $2.00 - 10.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

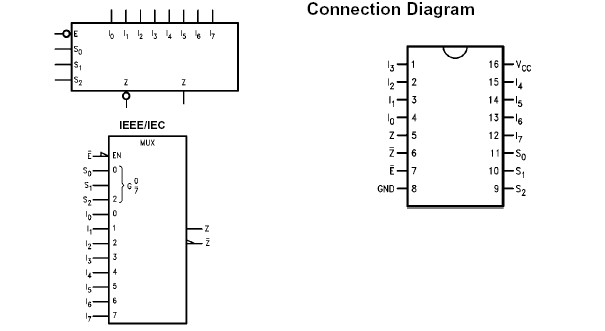

The 74F151A is a high-speed 8-input digital multiplexer. It provides in one package the ability to select one line of data from up to eight sources. The 74F151A can be used as a universal function generator to generate any logic function of four variables. Both assertion and negation outputs are Provided.

Parametrics

74F151A absolute maximum ratings: (1)Storage Temperature:-65°C to +150°C; (2)Ambient Temperature under Bias:-55°C to +125°C; (3)Junction Temperature under Bias:-55°C to +175°C; (4)Plastic:-55°C to +150°C; (5)VCC Pin Potential to Ground Pin:-0.5V to +7.0V; (6)Input Voltage: -0.5V to +7.0V; (7)Input Current :-30 mA to +5.0 mA; (8)Voltage Applied to Output in HIGH State (with VCC = 0V):Standard Output:-0.5V to VCC;3-STATE Output:-0.5V to +5.5V; (9)Current Applied to Output in LOW State (Max):twice the rated IOL (mA).
