The ADG507AKRZ is a CMOS monolithic analog multiplexer with 16 channels and dual 8 channels, respectively. The ADG507AKRZ switches one of eight differential inputs to a common differential output, depending on the state of three binary addresses and an enable input.And the ADG507AKRZ has TTL and 5 V CMOS logic compatible digital inputs.
Parametrics
ADG507AKRZ absolute maximum ratings: (1)VDD to VSS: 44 V; (2)VDD to GND :25 V; (3)VSS to GND:–25 V; (4)Analog Inputs2 Voltage at S, D : VSS–2 V to VDD + 2 V or 20 mA, Whichever Occurs First; (5)Continuous Current, S or D: 20 mA; (6)Pulsed Current S or D 1 ms Duration, 10% Duty Cycle : 40 mA; (7)Digital Inputs2 Voltage at A, EN: VSS – 4 V to VDD + 4 V or 20 mA, Whichever Occurs First; (8)Power Dissipation (Any Package) Up to +75°C:470 mW; (9)Operating Temperature:Commercial (K Version) :–40°C to +85°C;Industrial (B Version) : –40°C to +85°C;Extended (T Version) : –55°C to +125°C; (10)Storage Temperature Range :–65°C to +150°C; (11)Lead Temperature (Soldering, 10 secs) :+300°C.
Features
ADG507AKRZ features: (1)44 V Supply Maximum Rating; (2)VSS to VDD Analog Signal Range; (3)Single/Dual Supply Specifications; (4)Wide Supply Ranges (10.8 V to 16.5 V); (5)Extended Plastic Temperature Range(–408C to +858C); (6)Low Power Dissipation (28 mW max); (7)Low Leakage (20 pA typ); (8)Available in 28-Lead DIP, SOIC, PLCC, TSSOP and LCCC Packages; (9)Superior Alternative to:DG507A, Hl-507.

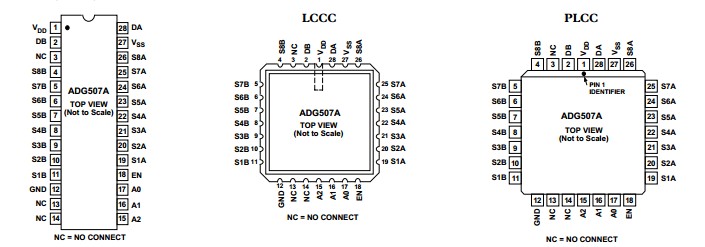

Diagrams
