Product Summary

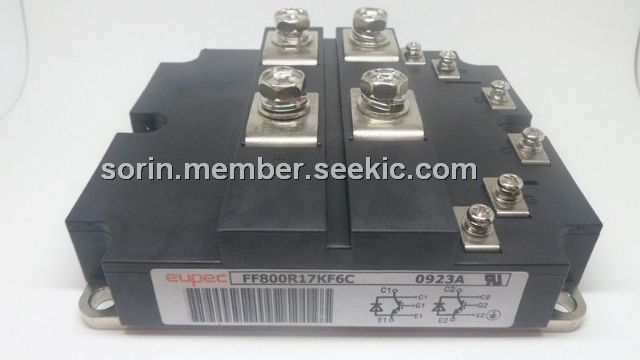

The FF800R17KF6C is an IGBT module.
Parametrics
FF800R17KF6C absolute maximum ratings: (1)Collector-emitter voltage: 1700V; (2)DC-collector current: 1300A; (3)Repetitive peak collector current: 1600A; (4)Total power dissipation: 6.25kW; (5)DC forward current: 800A; (6)Insulation test voltage: 4kV.
Features
FF800R17KF6C characteristics: (1)Turn on delay time: 0.4μs; (2)Rise time(inductive load): 0.14μs; (3)turn off delay time(inductive load): 1.1μs; (4)module lead resistance: 0.16mΩ.

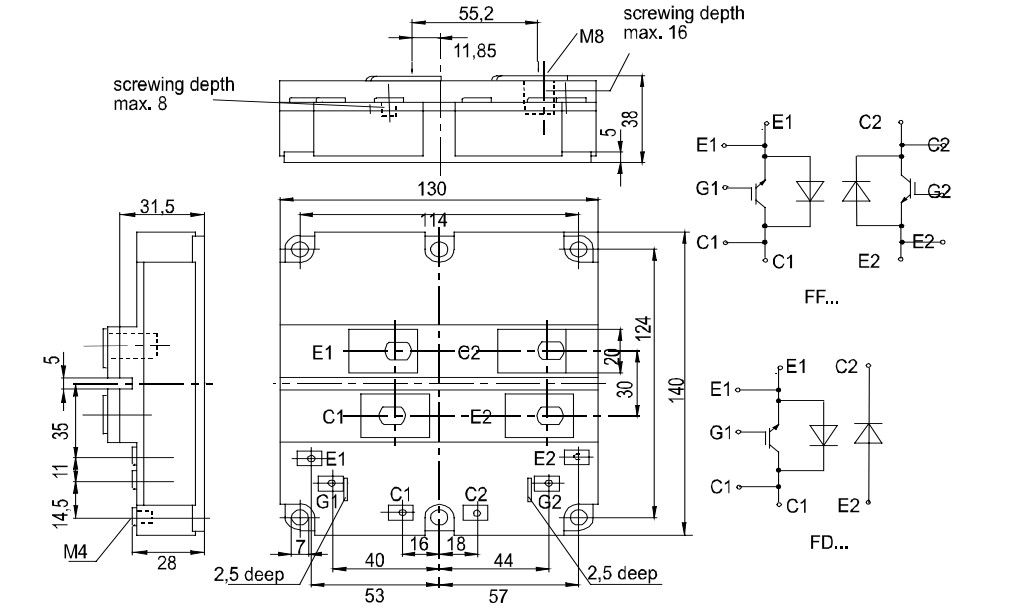

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 FF800R17KF6C_B2 |
Infineon Technologies |
IGBT Modules N-CH 1.7KV 1.3KA |
Data Sheet |
|
|
||||||||
|
FF800R17KF6C_B4 |
Infineon Technologies |
IGBT Modules IGBT 1700V 800A |
Data Sheet |
|
|
||||||||
|
FF800R17KF6C-B2 |
Infineon Technologies |
IGBT Modules 1700V 800A DUAL |
Data Sheet |
Negotiable |
|
||||||||
