Product Summary

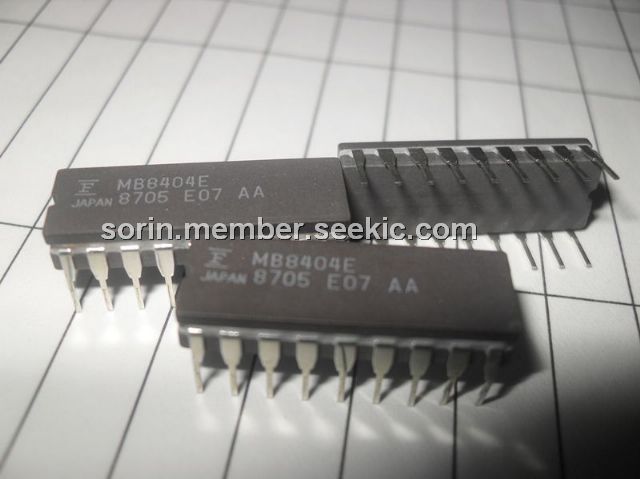

The MB8404E is a 4096 word by 1bit static random access memory fabricated with a cmos silicon gate process. The memory may be maintained in any state for an indefinite period of time. All pins are TTL compatible, and a single 5 v power supply is required. The MB8404E is suited for use in microprocessor systems and other applications where fast access time and ease of use are required. The MB8404E offers the advantages of low power dissipation, low cost, and high performance. The economical 18 pin package permits high density board layouts.
Parametrics
MB8404E absolute maximum ratings: (1)storage temperature range, TST: -65 to +150℃; (2)supply voltage, VCC: +8v; (3)input voltage, VIN: -0.3 to VCC+0.3 v; (4)output voltage, VOUT: -0.3 to VCC+0.3v.
Features
MB8404E features: (1)4096 words by 1 bit organization; (2)fast access time: 250ns max; (3)fast cycle time: 370ns min ; (4)TTL compatible input/output; (5)single +5v power supply; (6)low power operation: 17mw/mhz max; (7)low power standby: 275 uw max; (8)data retention: 2.0v min; (9)standard JEDEC pinout; (10)three-state output; (11)on chip address register; (12)standard 18 pin DIP package; (13)compatible with HM 6540 and MBM 4044.
Diagrams
 |
