Product Summary

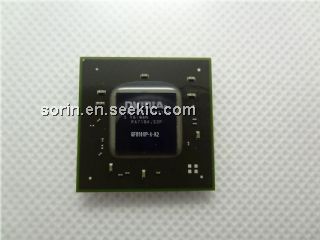

The GF8100P-A-A2 is a Super Fast Rectifier.

Parametrics

GF8100P-A-A2 absolute maximum ratings: (1)Maximum recurrent peak reverse voltage, VRRM: 100V; (2)Maximum RMS voltage, VRMS: 70V; (3)Maximum DC blocking voltage, VDC: 100V; (4)Maximum average forward rectified current total device (rated VR), TC=100℃, I(AV): 8.0A; (5)Peak forward surge current, 8.3ms single half-sine-wave superimposed on rated load, IFSM: 125A; (6)Maximum instantaneous forward voltage @IF=8.0A, VF: 0.98 to 1.7V; (7)Maximum reverse current @Tj=25℃, IR: 10μA; at rated DC blocking voltage @Tj=125℃, IR: 500μA; (8)Maximum reverse recovery time, TRR: 30ns; (9)Typical thermal resistance junction to case, RθjC: 5.0℃/W; (10)Operating junction temperature range, Tj: -55 to 150℃; (11)Storage temperature range, TSTG: -55 to 150℃.

Features

GF8100P-A-A2 features: (1)Low cost; (2)Diffused junction; (3)Glass passivated junction; (4)Low forward voltage drop; (5)High current capability; (6)Easily cleaned with Alcohol,Isopropanol and similar solvents; (7)The plastic material carries U/L recognition 94V-0.

Diagrams

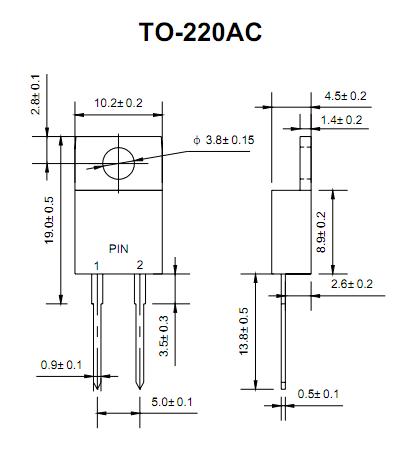

GF8100P-A-A2 block diagram
