Product Summary

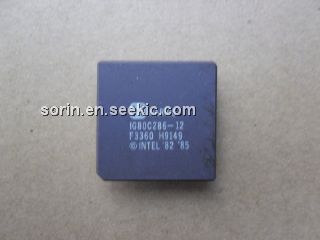

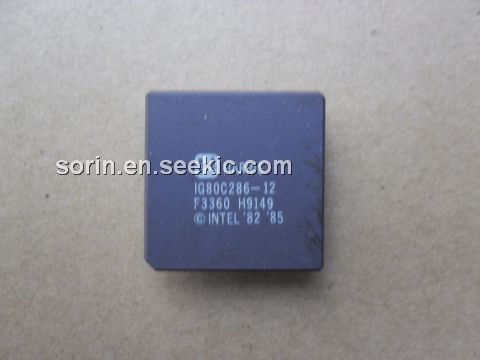

The IG80C286-12 is a static CMOS version of the NMOS 80286 microprocessor. The IG80C286-12 is an advanced, high-performance microprocessor with specially optimized capabilities for multiple user and multi-tasking sys-tems. The IG80C286-12 has built-in memory protection that supports operating system and task isolation as well as program and data privacy within tasks. The IG80C286-12 includes memory management capabilities that map 230 (one gigabyte) of virtual address space per task into 224 bytes (16 megabytes) of physical memory.
Parametrics
IG80C286-12 absolute maximum ratings: (1)Supply Voltage: +8.0V; (2)Input, Output or I/O Voltage Applied: GND -1.0V to VCC +1.0V; (3)Storage Temperature Range: -65℃ to +150℃; (4)Junction Temperature: +175℃; (5)Lead Temperature (Soldering 10s): +300℃; (6)ESD Classication: Class 1.
Features
IG80C286-12 features: (1)This Circuit is Processed in Accordance to MIL-STD-883 and is Fully Conformant Under the Provisions of Paragraph 1.2.1; (2)Compatible with NMOS 80286/883; (3)Static CMOS Design for Low Power Operation, ICCSB = 5mA Maximum; ICCOP = 185mA Maximum (80C286-10/883); ICCOP = 220mA Maximum (80C286-12/883); (4)Large Address Space, 16 Megabytes Physical; 1 Gigabyte Virtual per Task; (5)Integrated Memory Management, Four-Level Memory Protection and Support for Virtual Memory and Operating Systems; (6)Two 80C86 Upward Compatible Operating Modes, 80C286/883 Real Address Mode; Protected Virtual Address Mode; (7)Compatible with 80287 Numeric Data Co-Processor.

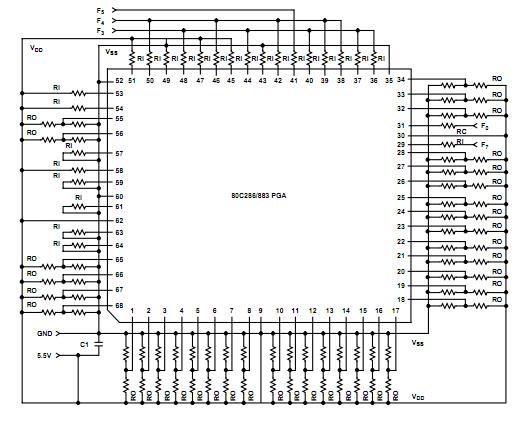

Diagrams
