Product Summary

The TC4423CPA is a 3A dual high-speed power MOSFET driver, which, in turn, is improved versions of the earlier TC426/427/428 series. The TC4423CPA is pin-compatible. The driver is capable of giving reliable service in far more demanding electrical environments than their antecedents.

Parametrics

TC4423CPA absolute maximum ratings: (1)Supply Voltage: +22V; (2)Input Voltage, IN A or IN B: VDD + 0.3V to GND -5.0V; (3)Maximum Chip Temperature: +150℃; (4)Storage Temperature Range: -65℃ to +150℃; (5)Lead Temperature (Soldering, 10 sec): +300℃.

Features

TC4423CPA features: (1)High Peak Output Current: 3A; (2)Wide Operating Range: 4.5V to 18V; (3)High Capacitive Load Drive Capability: 1800pF in 25nsec; (4)Short Delay Times: <40nsec Typ.; (5)Matched Rise/Fall Times; (6)Low Supply Current, With Logic "1" Input: 3.5mA; With Logic "0" Input: 350μA; (7)Low Output Impedance: 3.5Ω Typ.; (8)Latch-Up Protected ..Will Withstand 1.5A Reverse Current; (9)Logic Input Will Withstand Negative Swing Up to 5V; (10)ESD Protected: 4kV; (11)Pinouts Same as TC1426/27/28; TC4426/27/28.

Diagrams

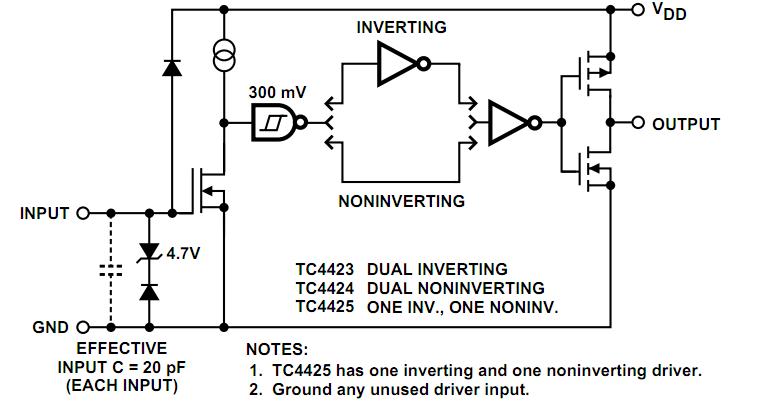

TC4423CPA block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

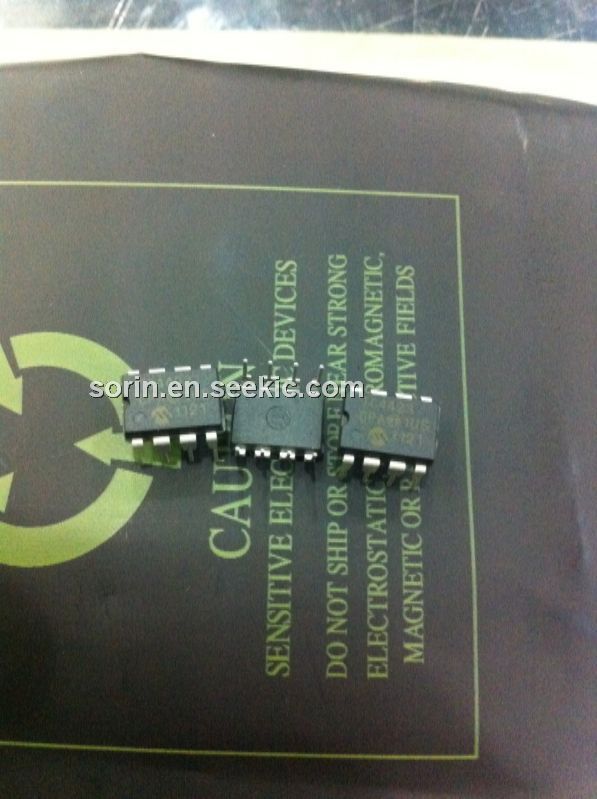

TC4423CPA
TC4423CPA
Microchip Technology
Power Driver ICs 3A Dual
Data Sheet
0-1: $1.70
1-10: $1.36
10-25: $1.13
25-100: $1.03
