Product Summary
The TIP147 is a silicon Epitaxial-Base NPN power transistor in monolithic Darlington configuration, mounted in TO-218 plastic package. The device is intented for use in power linear and switching applications. The TIP147 is suitable for linear and switching industrial equipment.
Parametrics
TIP147 absolute maximum ratings: (1)VCBO, Collector-Base Voltage (IE = 0): 100 V; (2)VCEO, Collector-Emitter Voltage (IB = 0): 100 V; (3)VEBO, Emitter-Base Voltage (IC = 0): 5 V; (4)IC, Collector Current: 10 A; (5)ICM, Collector Peak Current: 20 A; (6)IB, Base Current: 0.5 A; (7)Ptot, Total Dissipation at Tcase ≤ 25℃: 125 W; (8)Tstg, Storage Temperature: -65 to 150℃; (9)Tj, Max. Operating Junction Temperature: 150℃.
Features
TIP147 features: (1)STMicroelectronics preferred salestypes; (2)complementary PNP - NPN devices; (3)monolithic darlington configuration; (4)integrated antiparallel collector-emitter diode.

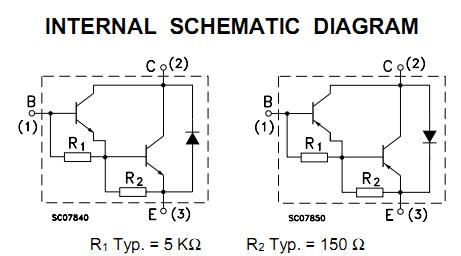

Diagrams
