Product Summary

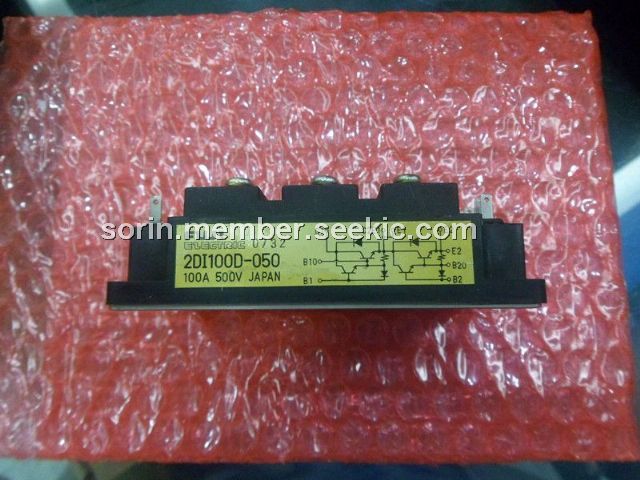

The 2DI100D-050 is an insulated type power transistor module. Applications include high power switching, AC motor controls, DC motor controls and uninterruptible supply.

Parametrics

2DI100D-050 absolute maximum ratings: (1)VCHC: 600V; (2)VCDC: 600V; (3)DC: 100A; (4)Junction temperature: 150℃; (5)storage temperature: -40 to 125℃.

Features

2DI100D-050 features: (1)including free wheeling diode; (2)high dc current gain; (3)insulated type.

Diagrams

2DI100D-050 block diagram
