Product Summary

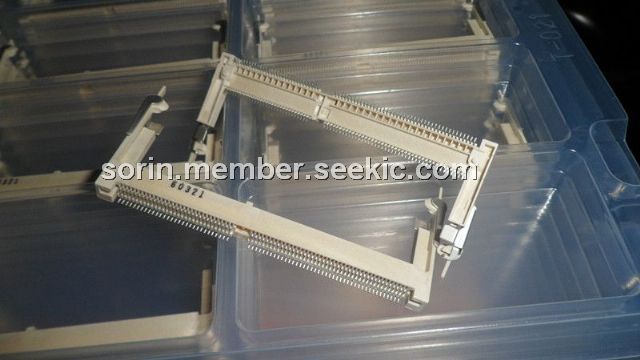

54698-7001 DDR3 / DDR2 / DDR Connectors R/A SMT 144P 5.0V 5.2mm height
Other Names 054698-7001 054698-7001-E 0546987001 0546987001-E 54698-7001-E 546987001 546987001-E WM19014
Parametrics
Manufacturer: Molex
Product Category: DDR3 / DDR2 / DDR Connectors
RoHS: Details
Product Type: SODIMM
Series: 54698
Pitch: 0.8 mm
Number of Positions / Contacts: 144
Mounting Style: SMD/SMT
Mounting Angle: Right
Housing Material: Thermoplastic, High Temperature
Contact Material: Brass, Phosphor Bronze
Contact Plating: Gold
Voltage Rating: 100 V
Current Rating: 0.3 A
Packaging: Tray
Factory Pack Quantity: 135pcs
Features
Memory Socket Connectors
In stock
welcom Inquiry

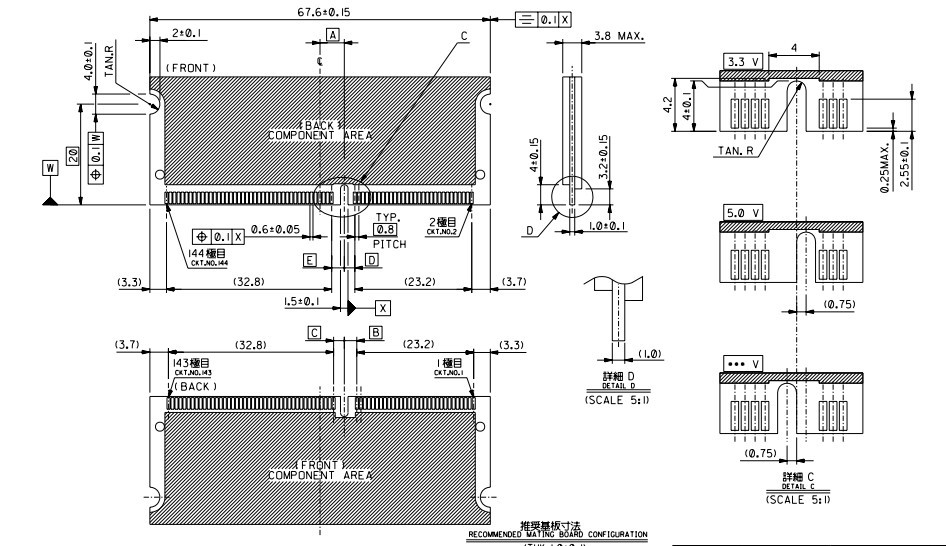

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 54698-7001 |
Molex |
DDR3 / DDR2 / DDR Connectors R/A SMT 144P 5.0V 5.2mm height |
Data Sheet |
Negotiable |
|
||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||
 |
54697-1440 |
Molex |
DDR3 / DDR2 / DDR Connectors .80MM SO DIMM RA 144 |
Data Sheet |
Negotiable |
|
||||
 |
54697-7000 |
Molex |
DDR3 / DDR2 / DDR Connectors R/A SMT 144P 3.3V 4.0mm height |
Data Sheet |
Negotiable |
|
||||
|
54697-7001 |
Molex |
DDR3 / DDR2 / DDR Connectors R/A SMT 144P 5.0V 4.0mm height |
Data Sheet |
Negotiable |
|
||||
|
54697-7003 |
Molex |
DDR3 / DDR2 / DDR Connectors 0.8 S.O.Dimm Hsg Ass Dimm Hsg Assy 144Ckt |
Data Sheet |
Negotiable |
|
||||
|
54698-1440 |
Molex |
DDR3 / DDR2 / DDR Connectors S.O. DIMM SKT RA 144 SMT |
Data Sheet |
Negotiable |
|
||||
|
54698-7000 |
Molex |
DDR3 / DDR2 / DDR Connectors R/A SMT 144P 3.3V 5.2mm height |
Data Sheet |
Negotiable |
|
||||
