Product Summary

The NY24W-K is a power relay with 1 pole and 5A current consumption.

Parametrics

NY24W-K absolute maximum ratings: (1)Arrangement: 1 form A (SPST-NO); (2)Material: Gold overlay silver alloy; (3)Style: Bifurcated; (4)Resistance (initial): Maximum 30 mΩ (at 1A 6 VDC); (5)Rating (resistive): 3A 250 VAC or 3A 30 VDC; (6)Maximum Carrying Current: 5A; (7)Maximum Switching Power: 750VA, 90W; (8)Maximum Switching Voltage: 270VAC, 125VDC; (9)Maximum Switching Current: 5A; (10)Minimum Switching Load: 1mA 5 VDC; (11)Nominal Power (at 20℃): 0.12W; (12)Operate Power (at 20℃): 0.054 W; (13)Operating Temperature: –40℃ to +90℃ (no frost); (14)Operate (at nominal voltage) Maximum: 10ms; (15)Release (at nominal voltage) Maximum: 5ms.

Features

NY24W-K features: (1)Ultra slim type with 5 mm thickness; (2)Low power consumption and high sensitivity; (3)Nominal coil power: 120 mW; (4)Operating power: 54 mW; (5)UL, CSA, VDE recognized; (6)Conforms to IEC 1010-1 and 1131-2; (7)Wide operating range; (8)SIL pitch terminals; (9)Plastic sealed type; (10)Compatible with solid state I/O module type SN (seepage 376) in size and pin (terminal) arrangement; (11)Environmentally friendly cadmium free contact type is available; (12)RoHS compliant since date code: 0439C1.

Diagrams

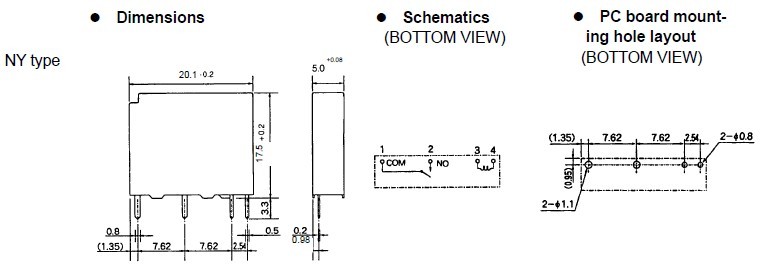

NY24W-K dimension
