Product Summary

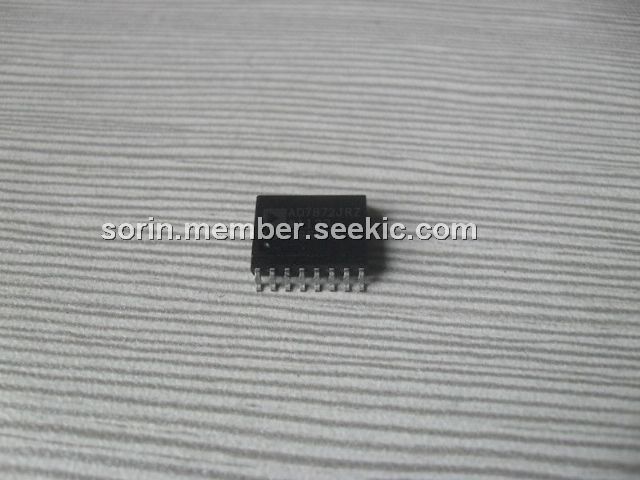

The AD7872JRZ is a fast, complete, 14-bit analog-to-digital converter. It consists of a track/hold amplifier,successive-approximation ADC, 3 V buried Zener reference and versatile interface logic. The AD7872JRZ features a self-contained, laser trimmed internal clock, so no external clock timing components are required. The on-chip clock may be overridden to synchronize ADC operation to the digital system for minimum noise.
Parametrics
AD7872JRZ absolute maximum ratings:(1)VDD to AGND:–0.3 V to +7 V; (2)VSS to AGND:+0.3 V to –7 V; (3)AGND to DGND:–0.3 V to VDD + 0.3 V; (4)VIN to AGND:VSS–0.3 V to VDD + 0.3 V; (5)REF OUT, CREF to AGND:0 V to VDD; (6)Digital Inputs to DGND: –0.3 V to VDD + 0.3 V; (7)Digital Outputs to DGND:–0.3 V to VDD + 0.3 V; (8)Operating Temperature Range:Commercial (J, K Versions):0°C to +70°C;Industrial (A, B Versions):–40°C to +85°C;Extended (T Version):–55°C to +125°C; (9)Storage Temperature Range:–65°C to +150°C; (10)Lead Temperature (Soldering, 10 sec):+300°C; (11)Power Dissipation (Any Package) to +75°C:450 mW; (12)Derates above +75°C by:6 mW/°C.
Features
AD7872JRZ features:(1)Complete Monolithic 14-Bit ADC; (2)2s Complement Coding; (3)Parallel, Byte and Serial Digital Interface; (4)80 dB SNR at 10 kHz Input Frequency; (5)57 ns Data Access Time; (6)Low Power—50 mW typ; (7)83 kSPS Throughput Rate; (8)16-Lead SOIC.

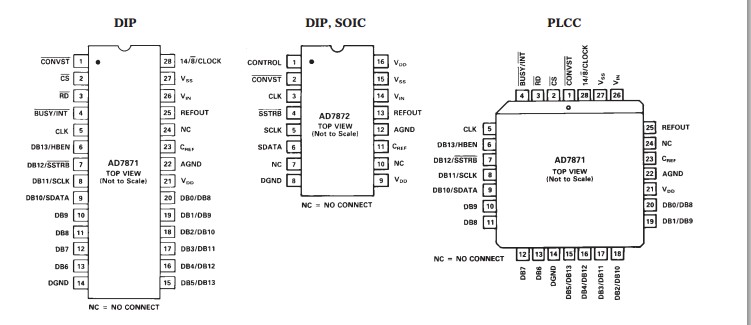

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 AD7872JRZ |
|
IC ADC 14BIT LC2MOS 16-SOIC |
Data Sheet |
|
|
||||||||||||||
|
AD7872JRZ-REEL |
|
IC ADC 14BIT SAMPLING 16SOIC |
Data Sheet |
|
|
||||||||||||||
