Product Summary

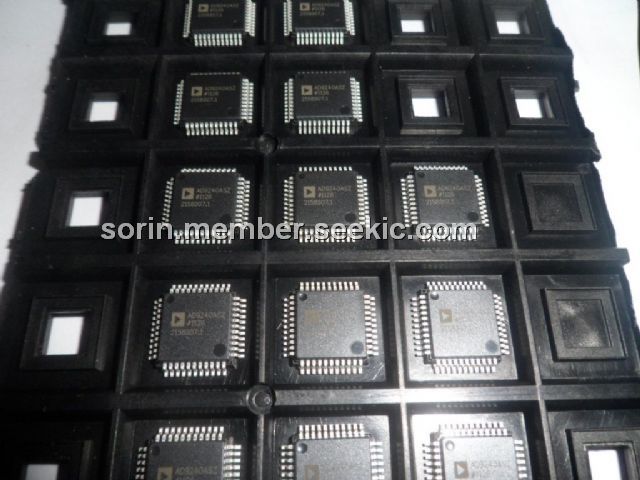

The AD9240ASZ is a 10 MSPS, single supply, 14-bit analog-todigital converter (ADC). It combines a low cost, high speed CMOS process and a novel architecture to achieve the resolution and speed of existing hybrid implementations at a fraction of the power consumption and cost.The AD9240ASZ is a complete, monolithic ADC with an on-chip, high performance, low noise sample-and-hold amplifier and programmable voltage reference.
Parametrics
AD9240ASZ absolute maximum ratings:(1)AVDD:–0.3 to +6.5 V; (2)DVDD: –0.3 to +6.5 V; (3)AVSS:–0.3 to +0.3 V; (4)AVDD: –6.5 to +6.5 V; (5)DRVDD:–0.3 to +6.5 V; (6)DRVSS: –0.3 to +0.3 V; (7)REFCOM: –0.3 to +0.3 V; (8)CLK AV:–0.3 to AVDD + 0.3 V; (9)Digital Outputs :–0.3 to DRVDD + 0.3 V; (10)VINA, VINB :–0.3 to AVDD + 0.3 V; (11)VREF :–0.3 to AVDD + 0.3 V; (12)SENSE : –0.3 to AVDD+ 0.3 V; (13)CAPB, CAPT :–0.3 to AVDD + 0.3 V; (14)BIAS :–0.3 to AVDD + 0.3 V; (15)Junction Temperature :+150 °C; (16)Storage Temperature: –65 to +150 °C; (17)Lead Temperature(10 sec) :+300 °C.
Features
AD9240ASZ features: (1)Monolithic 14-Bit, 10 MSPS A/D Converter; (2)Low Power Dissipation: 285 mW; (3)Single +5 V Supply; (4)Integral Nonlinearity Error: 2.5 LSB; (5)Differential Nonlinearity Error: 0.6 LSB; (6)Input Referred Noise: 0.36 LSB; (7)Complete: On-Chip Sample-and-Hold Amplifier and Voltage Reference; (8)Signal-to-Noise and Distortion Ratio: 77.5 dB; (9)Spurious-Free Dynamic Range: 90 dB; (10)Out-of-Range Indicator; (11)Straight Binary Output Data; (12)44-Lead MQFP

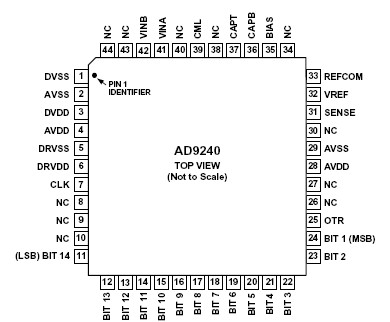

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 AD9240ASZ |
|
IC ADC 14BIT 10MSPS 44-MQFP |
Data Sheet |
|
|
||||||||||||||||
|
AD9240ASZRL |
|
IC ADC 14BIT 10MSPS 44-MQFP TR |
Data Sheet |
|
|
||||||||||||||||
