Product Summary

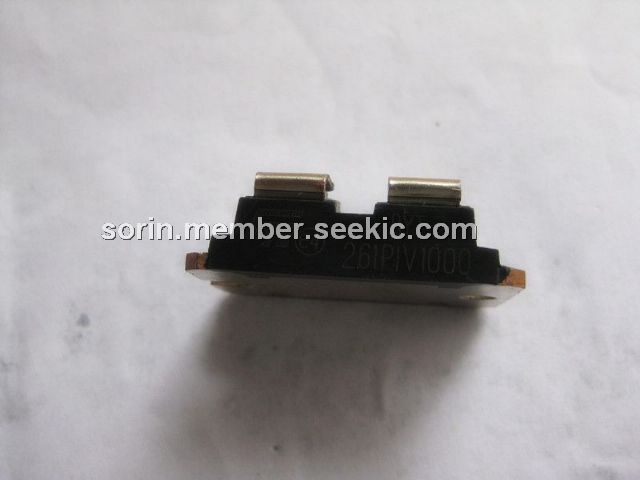

The BYT261PIV1000 is a fast recovery rectifier diode.

Parametrics

BYT261PIV1000 absolute maximum ratings: (1)VRRM, repetitive peak reverse voltage: 1000V; (2)IFRM, repetitive peak forward current: 1000A; (3)IF, RMS forward current: 140A; (4)IFSM, surge non repetitive forward current: 400A; (5)Tstg, storage temperature range: -40 to 150℃; (6)Tj, maximum operating junction temeprature: 150℃.

Features

BYT261PIV1000 features: (1)Very low reverse recovery time; (2)Very low switching losses; (3)Low noise turn-off switching; (4)Insulated package: ISOTOP.

Diagrams

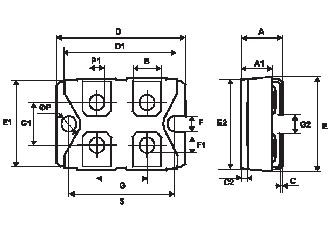

BYT261PIV1000 diagram
