Product Summary

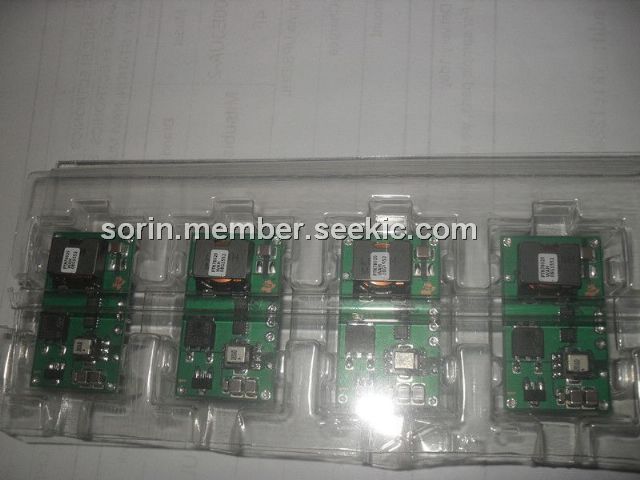

The PTN78020WAH is a wide-input adjustable switching regulator. Its applications include general-purpose, industrial controls.
Parametrics
PTN78020WAH absolute maximum ratings: (1)operating free-air temperature: -40 to 85℃; (2)wave solder temperature: 260℃; (3)input surge voltage: 38V; (4)output power: 90W; (5)inhibit input voltage: -0.3 to 5V.
Features
PTN78020WAH features: (1)6A output current; (2)wide-input voltage; (3)wide-input voltage; (4)high efficiency; (5)on/off inhibit; (6)under voltage lockout.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 PTN78020WAH |
Texas Instruments |
DC/DC Converters 6-A Wide-Input Vltg Adj Swtch Regulator |
Data Sheet |
|
|
||||||||||||
