Product Summary

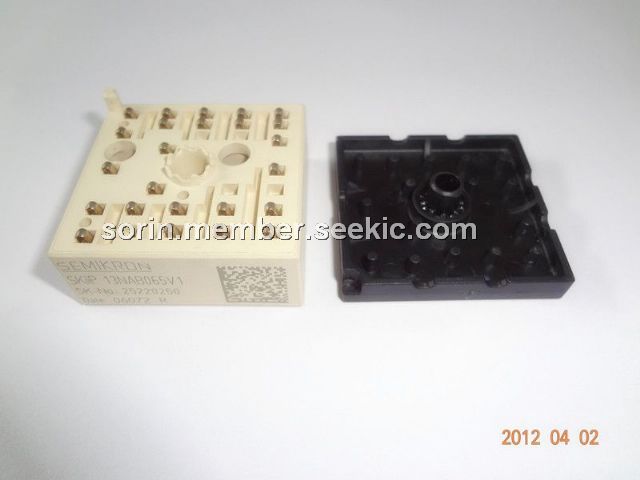

The SKIIP13NAB065V1 is a 3-phase bridge rectifier. Its applications include inverter up to 56kVA, typical motor power 30kW.
Parametrics
SKIIP13NAB065V1 absolute maximum ratings: (1)VCES: 600V; (2)IC: 22A; (3)ICRM: 44A; (4)VGES: ±20V; (5)Tj: -40 to 150℃.
Features
SKIIP13NAB065V1 features: (1)Ultrafast NPT IGBTs; (2)Robust and soft freewheeling diodes in CAL technology; (3)Highly reliable spring contacts for electrical connections; (4)UL recognised file no.E63532.

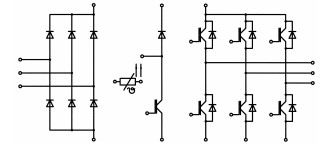

Diagrams
 |
