Product Summary

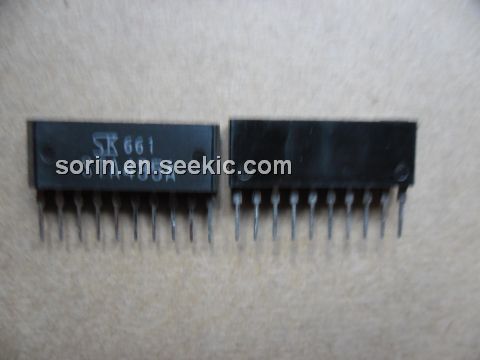

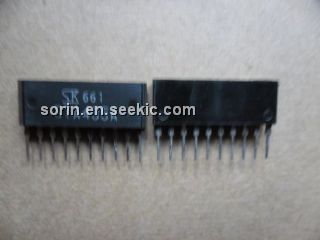

The STA435A is an NPN Darlington With built-in avalanche diode.

Parametrics

STA435A absolute maximum ratings: (1)VCBO: 65±15 V; (2)VCEO: 65±15 V; (3)VEBO: 6V; (4)IC: 4A; (5)ICP: 8 (PW≤10ms, Du≤50%) A; (6)PT: 4 (Ta=25℃)W; 20 (Tc=25℃)W; (7)Tj: 150℃; (8)Tstg: -40 to +150℃.

Features

STA435A features: (1)ICBO: 100 μA, VCB=50V; (2)IEBO: 10 mA, VEB=6V; (3)VCEO: 50 to 80 V IC=10mA; (4)hFE: 1000 VCE=4V, IC=3A; (5)vCE(sat): 2.0 V, IC=3A, IB=10mA; (6)ton: 1.0 μs, VCC 30V,; (7)Tstg: 4.0 μs, IC=3A,; (8)Tf: 1.5 μs, IB1=–IB2=10mA.

Diagrams

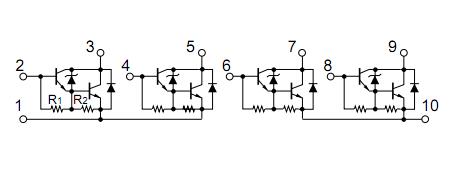

STA435A block diagram
