Product Summary

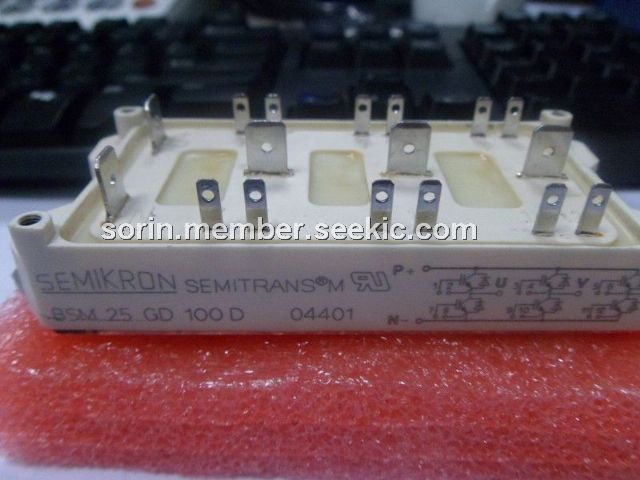

The BSM25GD100D is an IGBT module.

Parametrics

BSM25GD100D absolute maximum ratings: (1)collector-emitter voltage:1000V; (2)collector-gate voltage:1000V; (3)continuous collector current:35A or 25A; (4)pulsed collector current:70A or 50A; (5)operating and storage temperature range:-55 to +150℃; (6)power dissipation:300W; (7)insulation test voltage:2500Vac.

Features

BSM25GD100D features: (1)power module; (2)3-phase full bridge; (3)including fast free-wheel diodes; (4)package with insulated metal base plate; (5)package outlines/circuit diagram:3.

Diagrams

BSM25GD100D circuit diagram
