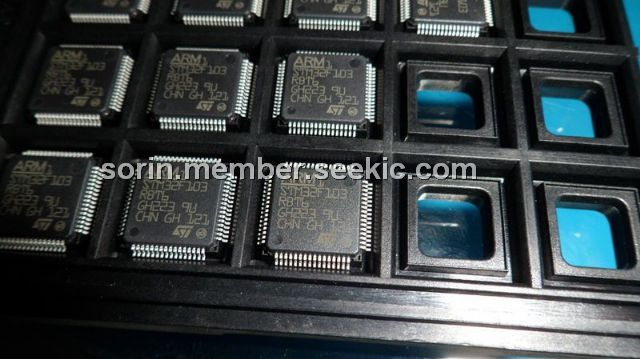

Product Summary

The STM32F103RBT6 is a Performance line, ARM-based 32-bit MCU with Flash, USB, CAN, seven 16-bit timers, two ADCs and nine communication interfaces. It incorporates the high-performance ARM Cortex-M3 32-bit RISC core operating at a 72 MHz frequency, high-speed embedded memories (Flash memory up to 128Kbytes and SRAM up to 20 Kbytes), and an extensive range of enhanced I/Os and peripherals connected to two APB buses. The STM32F103RBT6 offers two 12-bit ADCs, three general purpose 16-bit timers plus one PWM timer, as well as standard and advanced communication interfaces: up to two I2Cs and SPIs, three USARTs, an USB and a CAN.

Parametrics

STM32F103RBT6 absolute maximum ratings: (1)External 3.3 V supply voltage (including VDDA and VDD): –0.3 to 4.0 V; (2)Input voltage on five volt tolerant pin: -0.3 to +5.5 V; (3)Input voltage on any other pin: -0.3 VDD+0.3 V; (4)Variations between different power pins: 50 mV; (5)Variations between all the different ground pins: 50 mV.

Features

STM32F103RBT6 features: (1)Core: ARM 32-bit Cortex.-M3 CPU: 72 MHz, 90 DMIPS with 1.25 DMIPS/MHz, Single-cycle multiplication and hardware; (2)division, Nested interrupt controller with 43 maskable interrupt channels, Interrupt processing (down to 6 CPU cycles) with tail chaining; (3)Memories: 32-to-128 Kbytes of Flash memory, 6-to-20 Kbytes of SRAM; (4)Clock, reset and supply management: 2.0 to 3.6 V application supply and I/Os, POR, PDR, and programmable voltage; (5)detector (PVD), 4-to-16 MHz quartz oscillator, Internal 8 MHz factory-trimmed RC, Internal 32 kHz RC.

Diagrams

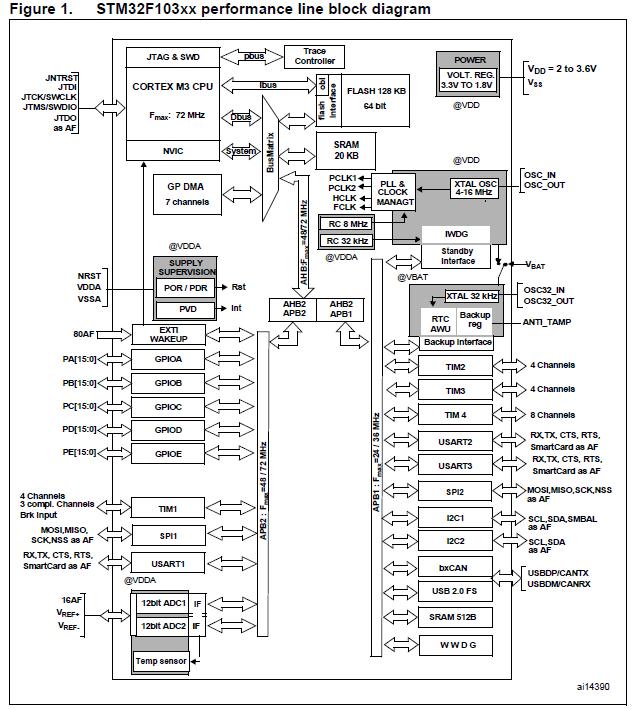

STM32F103RBT6 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
STM32F103RBT6
STM32F103RBT6

STMicroelectronics

ARM Microcontrollers (MCU) 32BIT Cortex M3 128K FLASH 20KB RAM

Data Sheet

0-1: $3.58
1-10: $3.47
10-100: $3.17
100-250: $2.91
STM32F103RBT6TR
STM32F103RBT6TR

STMicroelectronics

ARM Microcontrollers (MCU) 32BIT Cortex M3 USB CAN 7 TMRS 2 ADCS

Data Sheet

0-650: $2.65
650-1000: $2.31
1000-2000: $2.23
