Product Summary

The USB2641-02 is a Surface Mount Ultrafast Plastic Rectifier. The applications of the USB2641-02 include switching mode converters
and inverters for consumer, computer, automotive and Telecommunication.

Parametrics

USB2641-02 absolute maximum ratings: (1)Device marking code: U60; (2)Maximum repetitive peak reverse voltage, VRRM: 600 V; (3)Maximum RMS voltage, VRMS: 420 V; (4)Maximum DC blocking voltage, VDC: 600 V; (5)Maximum average forward rectified current (see Fig. 1), IF(AV): 2.0 A; (6)Peak forward surge current 8.3 ms single half sine-wave superimposed on rated load, IFSM: 90 A; (7)Non-repetitive avalanche energy at IAS = 2.0 A, L = 10 mH, TJ = 25℃, EAS: 20 mJ; (8)Operating junction and storage temperature range, TJ, TSTG: -55 to + 150℃.

Features

USB2641-02 features: (1)Glass passivated chip junction; (2)Ideal for automated placement; (3)Ultrafast recovery times for high efficiency; (4)Low forward voltage, low power losses; (5)High forward surge capability; (6)Meets MSL level 1, per J-STD-020C; (7)Solder Dip 260℃, 40 seconds; (8)Component in accordance to RoHS 2002/95/EC and WEE 2002/96/EC.

Diagrams

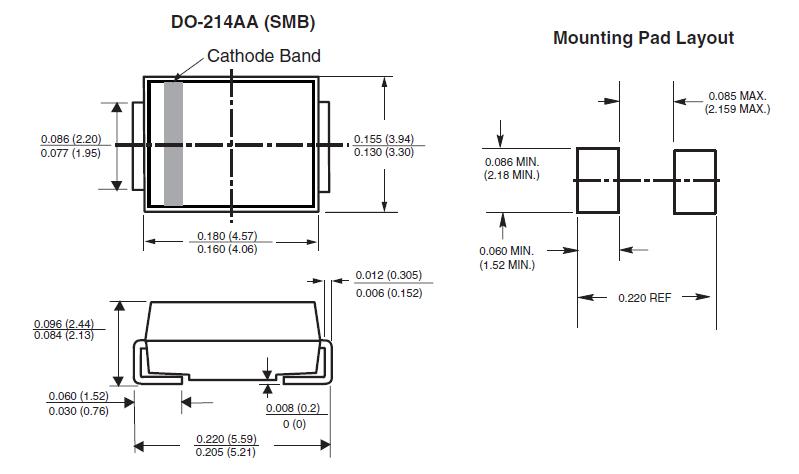

USB2641-02 block diagram
