Product Summary

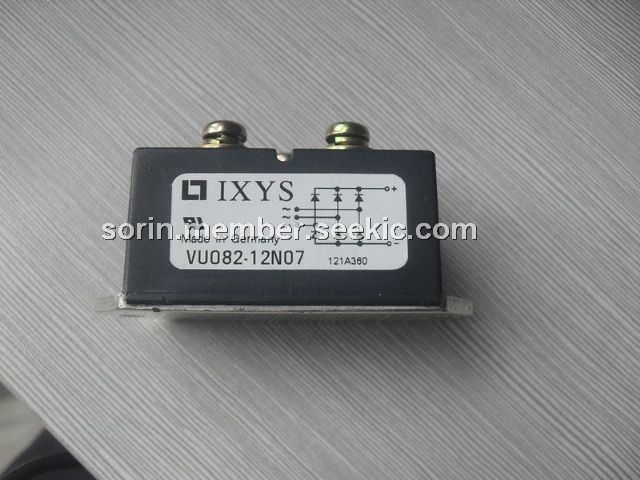

The VUO82-12N07 is a three phase rectifier bridge. Its applications include supplies for DC power equipment, input rectifiers for PWM inverter, battery DC power supplies, field supply for DC motors.
Parametrics
VUO82-12N07 absolute maximum ratings: (1)IdAV: 88A; (2)IFSM: 750A; (3)I2T: 2800A2S; (4)IR: 0.3mA; (5)VT0: 0.8V; (6)RthJC: 1.1K/W.
Features
VUO82-12N07 features: (1)Package with screw terminals; (2)Isolation voltage 3000V; (3)Planar passivated chips; (4)Blocking voltage up to 1800V; (5)Low forward voltage drop; (6)UL registered E72873.
Diagrams
 |
