Product Summary

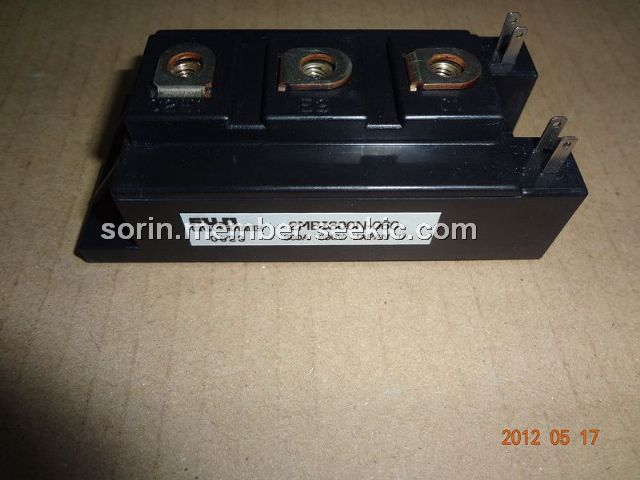

The 2MBI300N-060 is an IGBT module.And it is used in inverter for motor drive,AC and DC servo drive amplifier,uninterruptible power supply,industrial machine, such as welding machine.
Parametrics
2MBI300N-060 absolute maximum ratings: (1)Collector-Emitter voltage:600V; (2)Gate-Emitter voltage:±20V; (3)Collector current:Continuous:300A;1ms:600A; (4)Max. power dissipation:1100W; (5)Operating temperature: +150°C; (6)Storage temperature:-40 to +125°C; (7)Isolation voltage:AC 2500 (1min.)V; (8)Screw torque:Mounting:3.5N.m;Terminals:3.5N.m.
Features
2MBI300N-060 features: (1)VCE(sat) classified for easy parallel connection; (2)High speed switching; (3)Voltage drive; (4)Low inductance module structure.

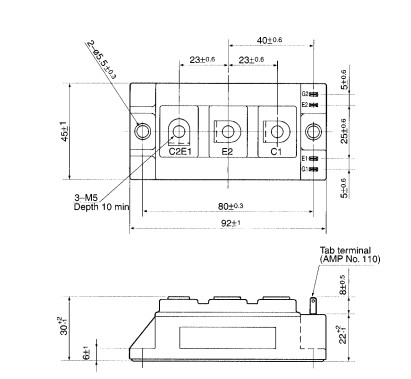

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 2MBI300N-060-04 |
Other |
|
Data Sheet |
Negotiable |
|
||||
