Product Summary

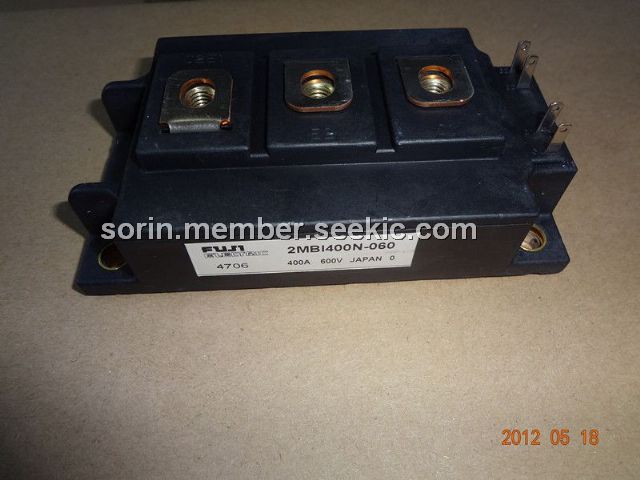

The 2MBI400N-060 is an IGBT module.And it is used in high power switching, A.C. motor control, D.C. motor control, uninterruptible power supply.
Parametrics
2MBI400N-060 absolute maximum ratings: (1)Collector-Emitter Voltage:600 V; (2)Gate -Emitter Voltage:± 20 V; (3)Collector Current:Continuous:400A;1ms:800A; (4)Max. Power Dissipation:1500 W; (5)Operating Temperature:+150 °C; (6)Storage Temperature :-40 to +125 °C; (7)Isolation Voltage (A.C. 1min): 2500 V; (8)Screw Torque:Mounting: 3.5;Terminals: 4.5.
Features
2MBI400N-060 features: (1)Square RBSOA; (2)Low Saturation Voltage; (3) Less Total Power Dissipation; (4)Improved FWD Characteristic; (5) Minimized Internal Stray Inductance; (6)Overcurrent Limiting Function (~3 Times Rated Current).
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 2MBI400N-060 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
2MBI400N-060-01 |
Other |
|
Data Sheet |
Negotiable |
|
||||
