Product Summary

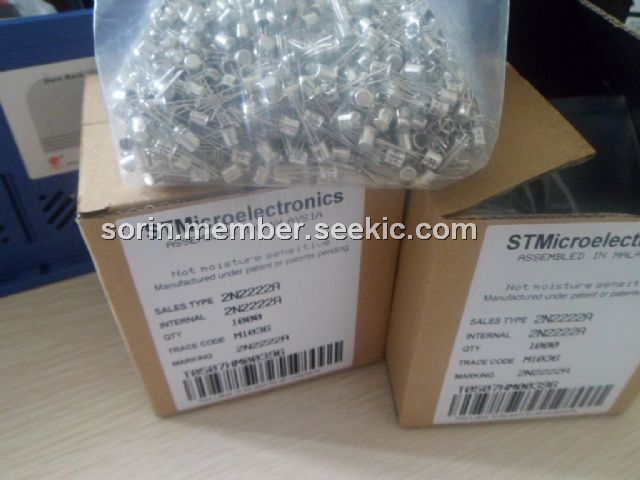

The 2N2222A is a silicon planar epitaxial NPN transistor in Jedec TO-18 (for 2N2222A) metal case. It is designed for high speed switching application at collector current up to 500mA, and feature useful current gain over a wide range of collector current, low leakage currents and low saturation voltage.

Parametrics

2N2222A absolute maximum ratings: (1)Collector-Base Voltage (IE = 0): 75V; (2)Collector-Emitter Voltage (IB = 0):40V; (3)Em it t e r- Base Vo lt age ( IC = 0):6V; (4)Collector Current:0.8A; (5)Total Dissipation at Tamb ≤ 25°C:0.5W;at Tcase ≤ 25°C:1.8W; (6)Storage Temperature: -65 to 200°C; (7)Max. Operating Junction Temperature:175°C.

Features

2N2222A features: (1)High current (max. 800 mA); (2)Low voltage (max. 40 V).

Diagrams

2N2222A Pin Diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
2N2222A
2N2222A
STMicroelectronics
Transistors Bipolar (BJT) NPN General Purpose
Data Sheet
0-1: $0.25
1-10: $0.23
10-100: $0.23
100-250: $0.22
2N2222A-B
2N2222A-B
Micro Commercial Components (MCC)
Transistors Bipolar (BJT) 800mA 40V
Data Sheet
Negotiable
2N2222A-BP
2N2222A-BP
Micro Commercial Components (MCC)
Transistors Bipolar (BJT) 800mA 40V
Data Sheet
0-1: $0.18
1-25: $0.17
25-100: $0.16
100-250: $0.13
2N2222ACSM
2N2222ACSM
Other

Data Sheet
Negotiable
2N2222ACSM4
2N2222ACSM4
Other

Data Sheet
Negotiable
2N2222ADCSM
2N2222ADCSM
Other

Data Sheet
Negotiable
2N2222AL
2N2222AL
Other

Data Sheet
Negotiable
2N2222AUA
2N2222AUA
Optek
Transistors Bipolar (BJT) NPN G.P. Transistor 4 Pin
Data Sheet
0-1: $7.82
1-100: $7.51
100-250: $7.22
250-500: $6.95
