Product Summary

The 74HC541PW is an octal non-inverting buffer/line driver with 3-state outputs. The 74HC541PW is a high-speed Si-gate CMOS device and is pin compatible with low power Schottky TTL(LSTTL). The device is specified in compliance with JEDEC standard no. 7A. The 3-state outputs are controlled by the output enable inputs OE1 and OE2. A HIGH on OEn causes the outputs to assume a high impedance OFF-state.

Parametrics

74HC541PW absolute maximum ratings: (1)tPHL/ tPLH, propagation delay An to Yn CL = 15 pF; VCC = 5 V: 10 ns; (2)CI, input capacitance: 3.5 pF; (3)CPD, power dissipation capacitance per buffer notes 1 and 2: 37pF.

Features

74HC541PW features: (1)Non-inverting outputs; (2)Output capability: bus driver; (3)ICC category: MSI.

Diagrams

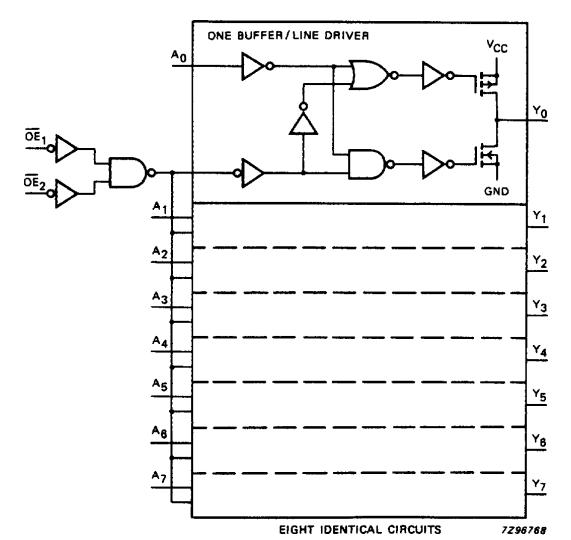

74HC541PW block diagram
